Question: I shared the values given for the process control experiment conducted in the chemical engineering laboratory. I need to make the desired values in matlab,

I shared the values given for the process control experiment conducted in the chemical engineering laboratory. I need to make the desired values in matlab, can you help me for the report?

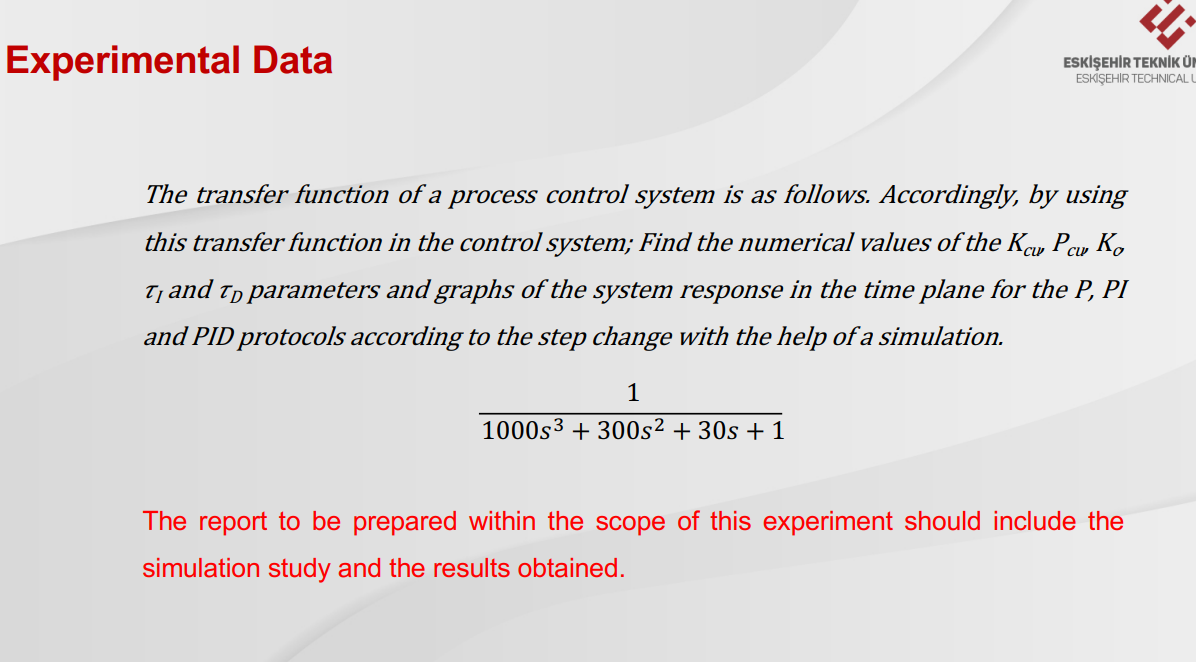

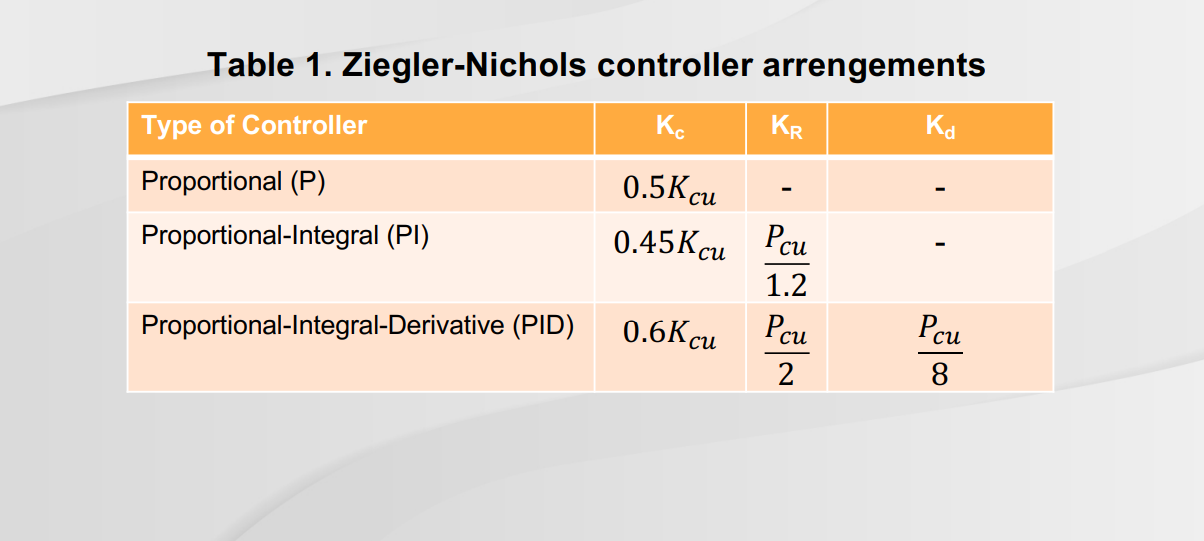

Table 1. Ziegler-Nichols controller arrengements Experimental Data The transfer function of a process control system is as follows. Accordingly, by using this transfer function in the control system; Find the numerical values of the KcPcKo I and D parameters and graphs of the system response in the time plane for the P,PI and PID protocols according to the step change with the help of a simulation. 1000s3+300s2+30s+11 The report to be prepared within the scope of this experiment should include the simulation study and the results obtained. Table 1. Ziegler-Nichols controller arrengements Experimental Data The transfer function of a process control system is as follows. Accordingly, by using this transfer function in the control system; Find the numerical values of the KcPcKo I and D parameters and graphs of the system response in the time plane for the P,PI and PID protocols according to the step change with the help of a simulation. 1000s3+300s2+30s+11 The report to be prepared within the scope of this experiment should include the simulation study and the results obtained
