Question: I would like to implement a Light Dimmer Circuit. I will be connecting everything to a small breadboard Help me determine the wire size and

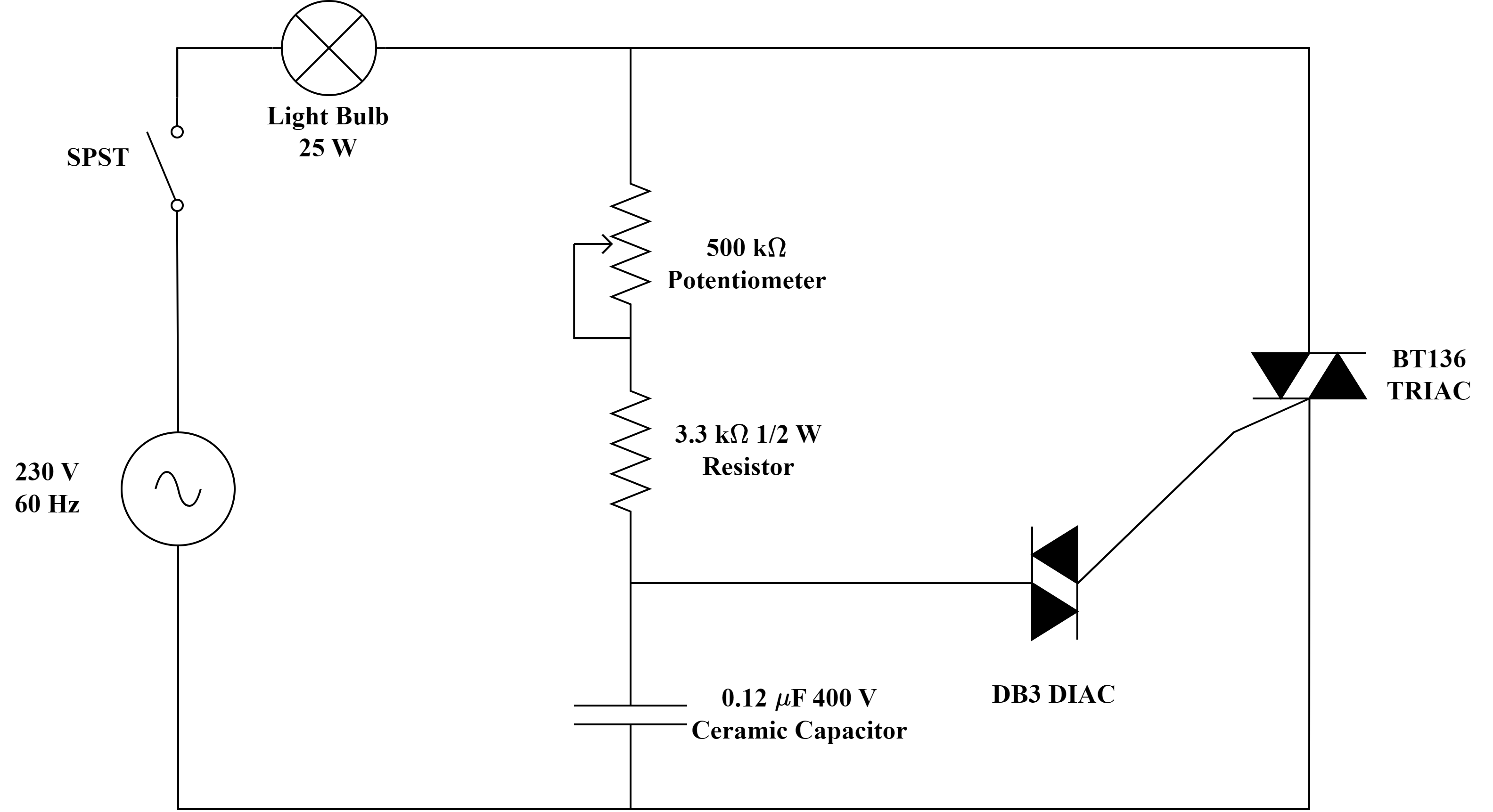

I would like to implement a Light Dimmer Circuit.
I will be connecting everything to a small breadboard
Help me determine the wire size and how I would Connect it. I would also want to know if it is safe to implement on a 8.2 x 5.5 x 0.85 cm (ABS plastic material)29-20 AWG Solid wires Breadboard. I also want to know the computations and expected values like the current in the circuit.
Source: 230 V |60 Hz (Directly from the outlet)
Components:
1- Breadboard (8.2 x 5.5 x 0.85 cm | ABS plastic material |29-20 AWG wires)
1- DB3 DIAC
1- BT136 TRIAC
1-3.3k Resistor (Not Sure)
1-0.12 uF Capacitor (400V)
1-500 k Potentiometer
1-25 W Light Bulb (220 V)
1- Socket
1- Switch
1- Plug (Type A)
