1. Identify all entities:

E.g.

EntityX

2. Identify special attributes:

• Composite attributes:

E.g.

AttributeX(subattributeX1, subattributeX2, ), AttributeY(, )

• Derived attributes:

3. Initial translation to relational schemas for all identified entities:

TIPS: Remember to indicate PK in correct way.

4. Identify cardinality ratios of all relationships:

E.g.

• Many-to-Many:

EntityX : EntityY

• One-to-Many:

• One-to-One:

5. Update relational schemas translation (add extra relation or attribute) with foreign key, according to cardinality:

First write the schema for EntityX, then in a new line indicate its FK references the PK of an existed Entity Y:

E.g.

EntityX (, AttributeX)

Foreign key AttributeX references EntityY (PK_Y)

• Many-to-many relationships:
• One-to-many relationships:
• One-to-one relationship

6. Update relational schemas translation (add extra relation or attribute) with foreign key, according to special attributes:

• Multi-valued attributes:

7. Repeat above steps if necessary.

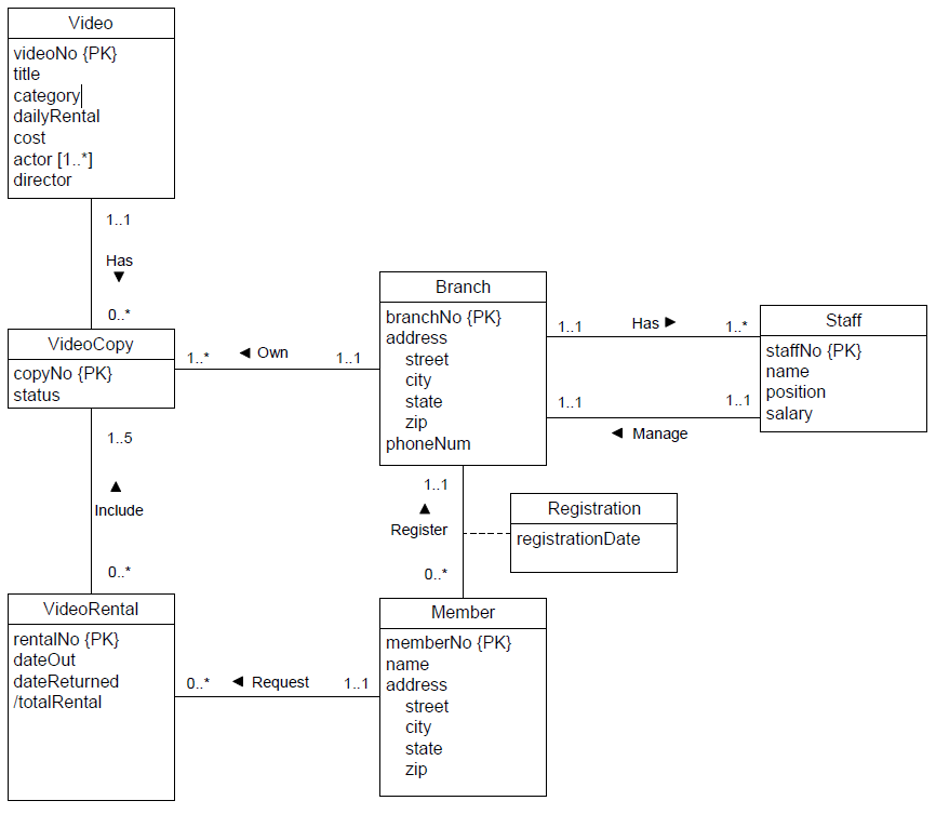

8. List final relational schema (after finish Updating according to all situations):
