Question: Identify all ( if any ) zero - force members in the truss. Use the method of joints to determine the force in each member

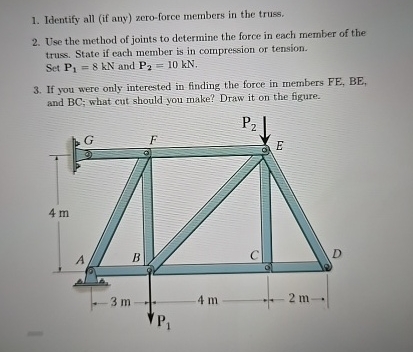

Identify all (if any) zero-force members in the truss.
Use the method of joints to determine the force in each member of the truss. State if each member is in compression or tension.
Set P1=8kN and P2=10kN.
If you were only interested in finding the force in members FE, BE, and BC ; what cut should you make? Draw it on the figure.
Identify all ( if any ) zero - force members in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
