Question: idk If I'm doing this right... Problems Analytical solutions using force components. Check graphically. 2.9 Three members of a truss frame into a steel gusset

idk If I'm doing this right...

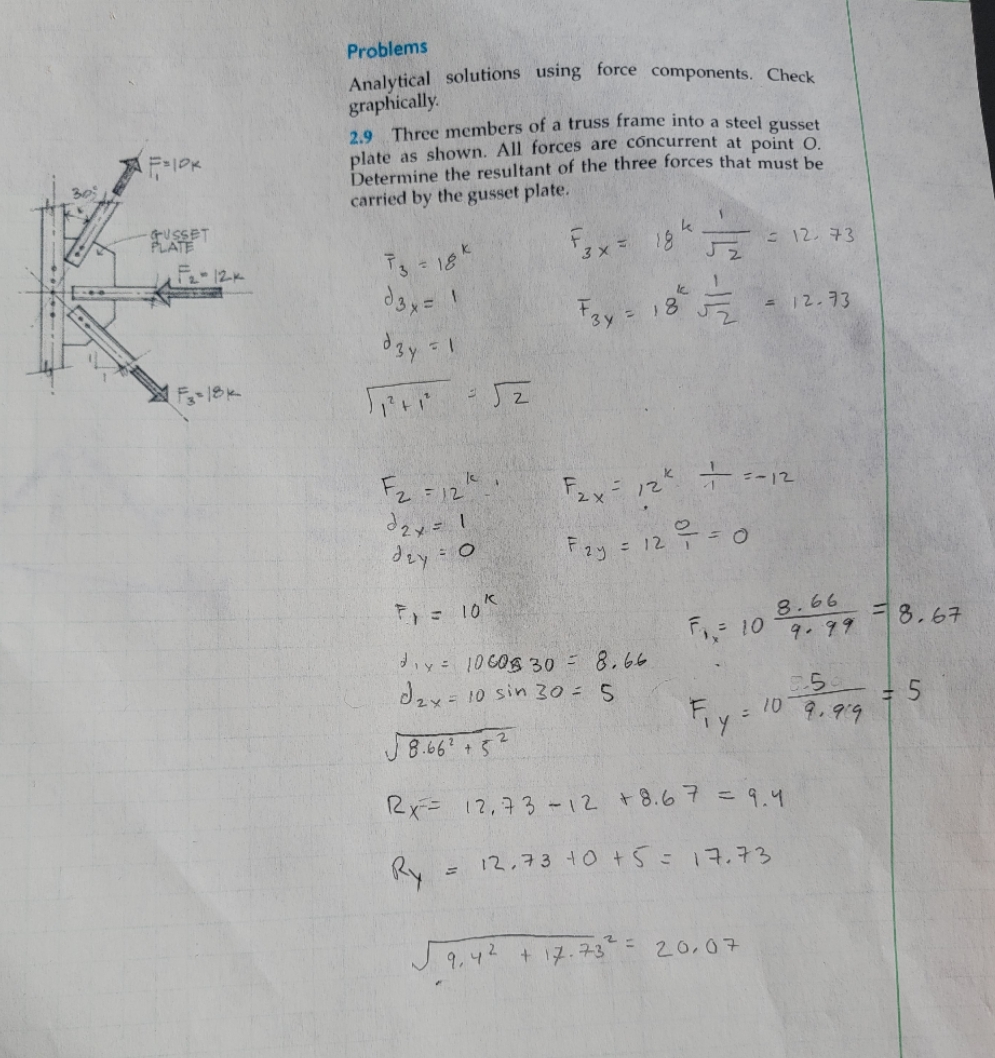

Problems Analytical solutions using force components. Check graphically. 2.9 Three members of a truss frame into a steel gusset plate as shown. All forces are concurrent at point O. Determine the resultant of the three forces that must be carried by the gusset plate. TUSSET PLATE 12- 12k 73 = 18 k 18 = 12 73 3 x = 1 Fax = 18 = 12. 73 day = 1 13=18 k 12 + 12 - 5 2 F2 = 12 Fzx - 12* 7 = - 12 2 2 x = 1 day = 0 F zy = 12 1 = 0 F1 = 10 * F 1 = 10 - 8.66 9 . 9 9 =18. 67 dix = 10605 30 = 8. 66 dax = 10 sin 30 - 5 J 8.66? + 52 Fly = 10 9, 9:9 5 RX= = 12,73-12+ 8.67 = 9.4 Ry = 12. 73 +0 + 5 = 17.73 9. 42 + 17. 73 = 20.07

Step by Step Solution

There are 3 Steps involved in it
