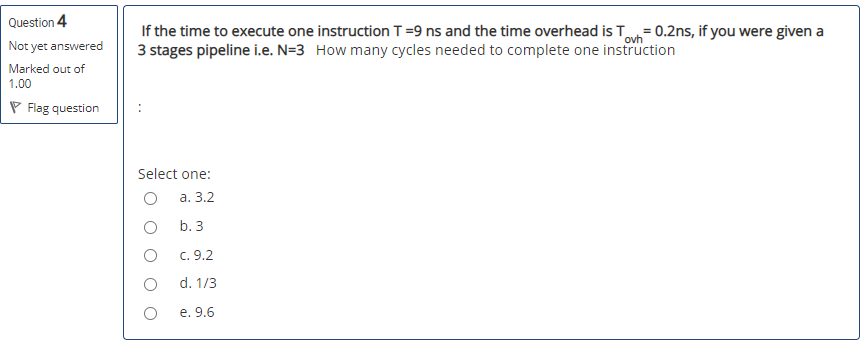

If data memory is being accessed, program memory lies idle, and vice versa is condiderd as a disadvantage of: Question 3 Not yet answered Marked out of 1.00 P Flag question Select one: a. Embedded systems O b. Harvard structure O C. Von Neumann architecture Question 4 Not yet answered Marked out of 1.00 If the time to execute one instruction T=9 ns and the time overhead is Top= 0.2ns, if you were given a 3 stages pipeline i.e. N=3 How many cycles needed to complete one instruction Flag question Select one: O a. 3.2 O b. 3 O C. 9.2 O d. 1/3 O e. 9.6 Question 7 Not yet answered Marked out of 1.00 P Flag question The Below code is an example of Mov ax, 10 Mov bx, 5 mul axbx Select one: O a. CISC O b. RISC O C. Non of the above in Booths algorithm if QO and Q-1 are 00 or 01 we do A-M and store the result in A Question 10 Not yet answered Marked out of 1.00 Flag question Select one: O True O False Question 11 Not yet answered Marked out of 1.00 If the time to execute one instruction T=9 ns and the time overhead is Town = 0.2ns, if you were given a 3 stages pipeline i.e. N=3 what is the un-pipelined execution time for one instruction: Flag question Select one: O a. 3.2 O b. 3 C. 9.6 d. 1/3 O e. 9.2
