Question: If S1 is, instead, initially closed when the battery is connected, discuss the qualitative behavior of the current flowing through R2 as a function of

If S1 is, instead, initially closed when the battery is connected, discuss the qualitative behavior of the current flowing through R2 as a function of time (i) after a short time has passed since the battery was connected, and (ii) after a long time has passed since the battery was connected. (iii) How much energy is stored in C1 after a long time has passed?

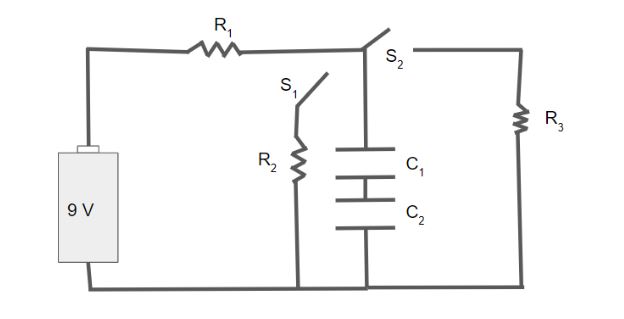

The circuit components have values C1 = 5?F, C2 = 10?F, R1 = 2 ?, R2 = 4 ?, and R3 = 1?. Initially the battery is disconnected from the circuit.
