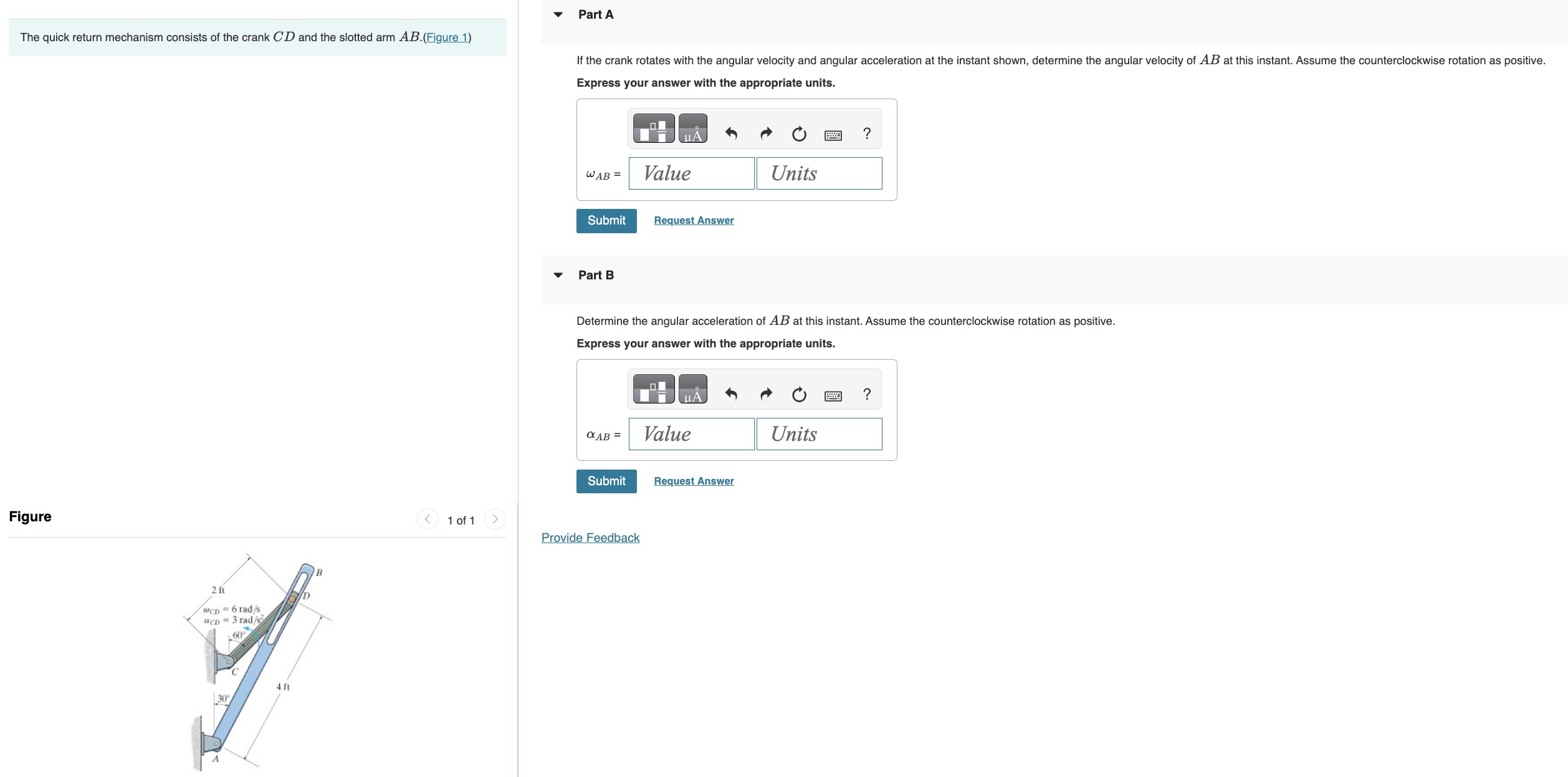

Question: If the crank rotates with the angular velocity and angular acceleration at the instant shown, determine the angular velocity of ( A B

If the crank rotates with the angular velocity and angular acceleration at the instant shown, determine the angular velocity of \( A B \) at this instant. Assume the counterclockwise rotation as positive. Express your answer with the appropriate units.
Part B
Determine the angular acceleration of \( A B \) at this instant. Assume the counterclockwise rotation as positive.
Express your answer with the appropriate units.
Request Answer
Figure
If the crank rotates with the angular velocity

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
