Question: II . Problems P . 1 . ( 1 0 points ) Replace the distributed loading with an equivalent resultant force and specify its location

II. Problems

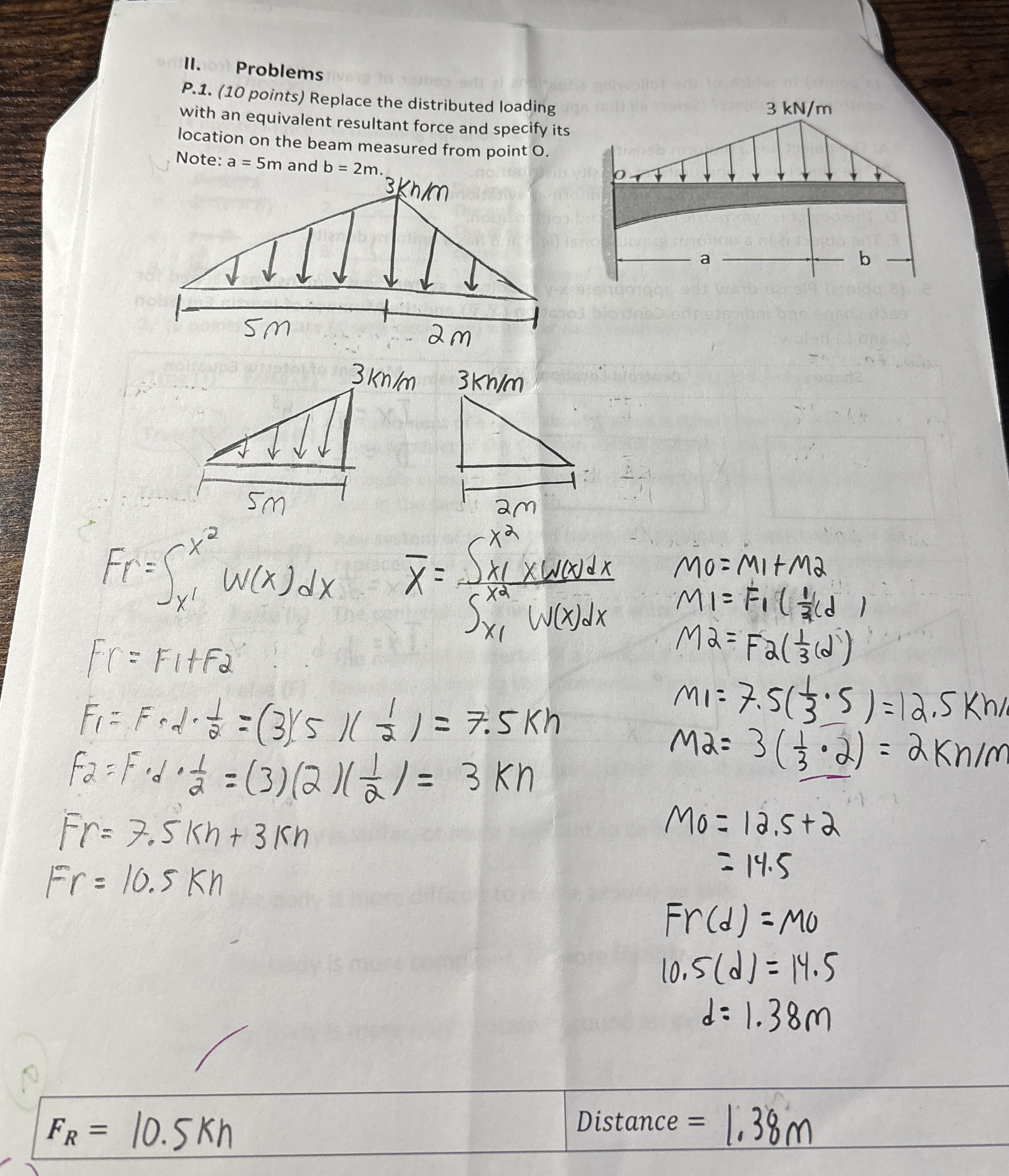

P.1.(10 points) Replace the distributed loading with an equivalent resultant force and specify its location on the beam measured from point 0. Note: a=5m and h=2m
(:F1=F0*d*12=35
II . Problems P . 1 . ( 1 0 points ) Replace the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
