ii) Translate the following high level code into MIPS Assembly code. High Level code

int main()

{

int y;

y = divideNumbers (9, 3);

}

int divideNumbers (int a, int b) {

int i;

int result = 0;

for (i=a; i>0; i = i-b) {

result = result + 1;

}

return result;

}

iii) How many instructions are executed to run the above program? iv) Figure in page number 2 shows a pipelined MIPS implementation. If all stages require 250 ns to complete its work, how much time will be taken to execute the above program in a five stage pipelined MIPS processor?

v) In the space provided below, draw a 4-bit register that is directly connected to a 4-bit data bus X.

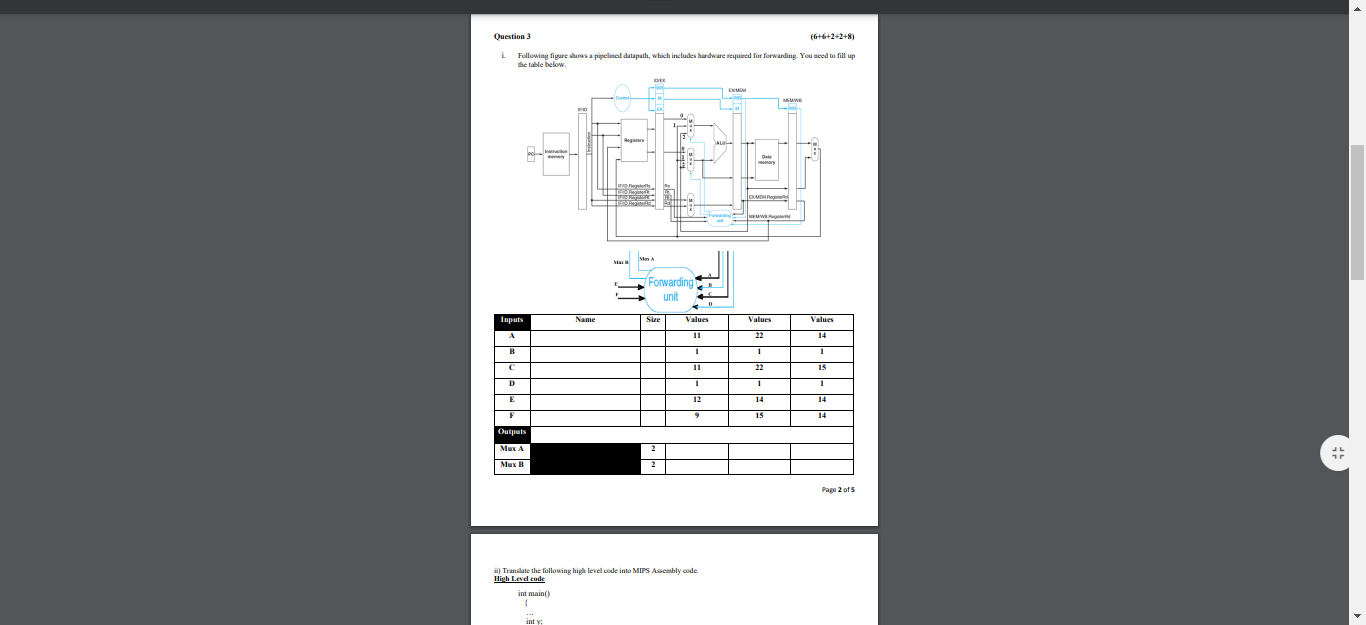

Question 3 (6+6+2+2+8) i Following figure shows a pipelined datapath, which includes hardware required for forwarding. You need to fill up de table below. DEX MW mer! DAM MW Forwarding unit Inputs Name Suze Values Values Values A 11 22 B 1 1 14 1 1 15 15 1 1 C 11 22 D 1 1 1 E 12 14 14 14 F 9 15 14 Outputs MUA Mux B 2 Page 2 of ) Translate the following high level code into MIPS Assembly code High Levd code int maino inty
