Question: (iii) Draw the Activity on Node network for the following project with time lag dependencies indicating clearly the earliest and latest start times, earliest and

(iii) Draw the Activity on Node network for the

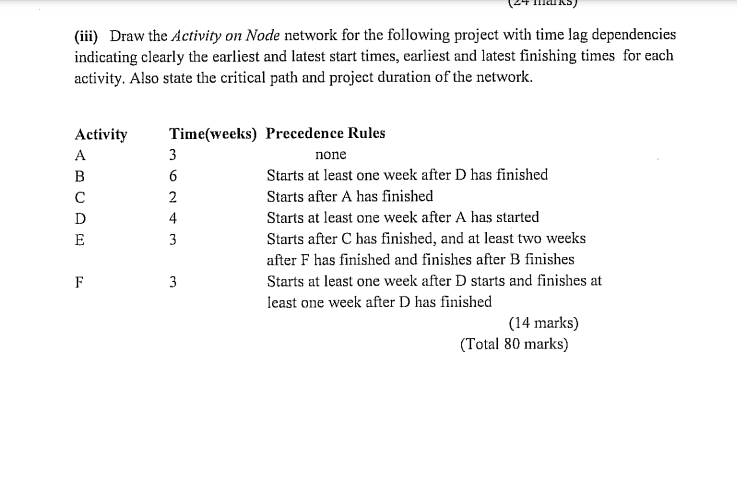

(iii) Draw the Activity on Node network for the following project with time lag dependencies indicating clearly the earliest and latest start times, earliest and latest finishing times for each activity. Also state the critical path and project duration of the network. Activity A B D E Time(weeks) Precedence Rules 3 none 6 Starts at least one week after D has finished 2 Starts after A has finished 4 Starts at least one week after A has started 3 Starts after C has finished, and at least two weeks after F has finished and finishes after B finishes 3 Starts at least one week after D starts and finishes at least one week after D has finished (14 marks) (Total 80 marks) F

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
