Question: III. Problem Solving: Answer the fallowing AC circuit problems. Provide an Illustration of the circuit and solutions to your answers. ( 3 0 pts )

III. Problem Solving: Answer the fallowing AC circuit problems. Provide an Illustration of the circuit and solutions to your answers. (30pts)

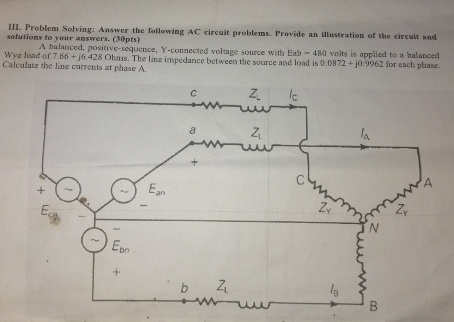

A balanced, positive-sequence, Y-connected voltage source with Eab -480 voits is applied to a balanced Wye load of 7.66+j6.428 Ohms. The line impedance between the source and load is 0:0872+j0:9962 for each phase. Calculate the line currents at phase A .
