Question: Im doing a digital logic lab project that simply tests the truth table. My question is, is there a way to calculate the output voltage

Im doing a digital logic lab project that simply tests the truth table. My question is, is there a way to calculate the output voltage of a two input gate given their voltages?

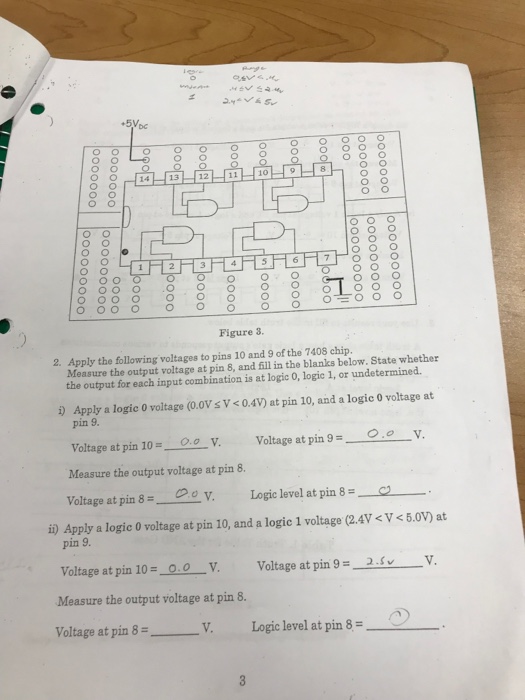

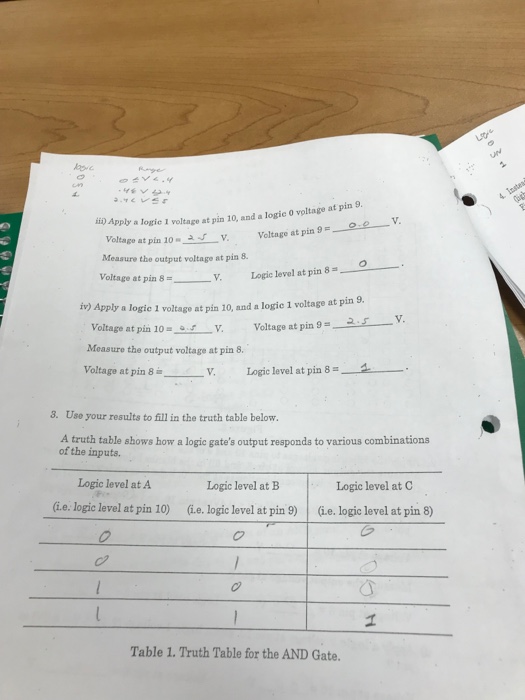

bc o O 10 Figure 3. 2. Apply the following voltages to pins 10 and 9 of the 7408 chip. Measure the output voltage at pin 8, and fill in the blanks below. State whether the output for each input combination is at logic 0, logic 1, or undetermined. ) Apply a logic 0 voltage (0.0Vs V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
