Implement the shift and add algorithm , which is used to perform multiplication in the old computer systems. The pseudo code is listed below. Write an MIPS program that uses the algorithm.

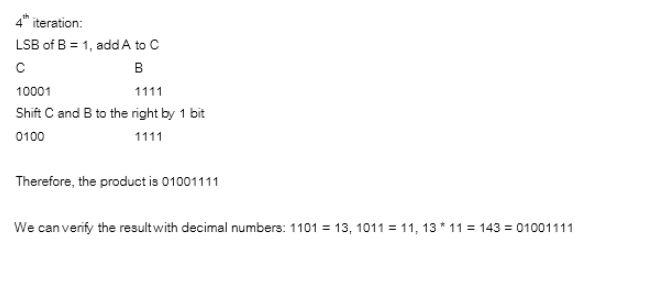

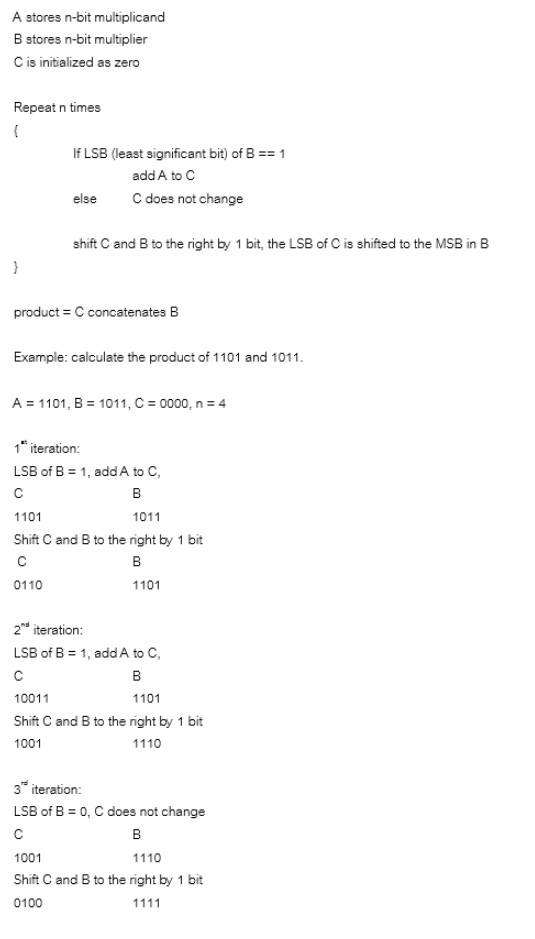

A stores n-bit multiplicand B stores n-bit multiplier C is initialized as zero Repeat n times If LSB (least significant bit) of B-1 else C does not change shift C and B to the right by 1 bit, the LSB of C is shifted to the MSB in B add A to C product C concatenates B Example: calculate the product of 1101 and 1011 A 1101, B 1011, C 0000, n 4 iteration: LSB of B = 1, add A to C, 1101 1011 Shift C and B to the right by 1 bit 0110 1101 2 iteration LSB of B = 1, add A to C, 10011 Shift C and B to the right by 1 bit 1001 1101 1110 3 iteration LSB of B = 0, C does not change 1110 1001 Shift C and B to the right by 1 bit 0100 A stores n-bit multiplicand B stores n-bit multiplier C is initialized as zero Repeat n times If LSB (least significant bit) of B-1 else C does not change shift C and B to the right by 1 bit, the LSB of C is shifted to the MSB in B add A to C product C concatenates B Example: calculate the product of 1101 and 1011 A 1101, B 1011, C 0000, n 4 iteration: LSB of B = 1, add A to C, 1101 1011 Shift C and B to the right by 1 bit 0110 1101 2 iteration LSB of B = 1, add A to C, 10011 Shift C and B to the right by 1 bit 1001 1101 1110 3 iteration LSB of B = 0, C does not change 1110 1001 Shift C and B to the right by 1 bit 0100
