Question: In a balanced three-phase system, the source is connected in delta. There are two balanced loads connected in parallel. The line connecting the source to

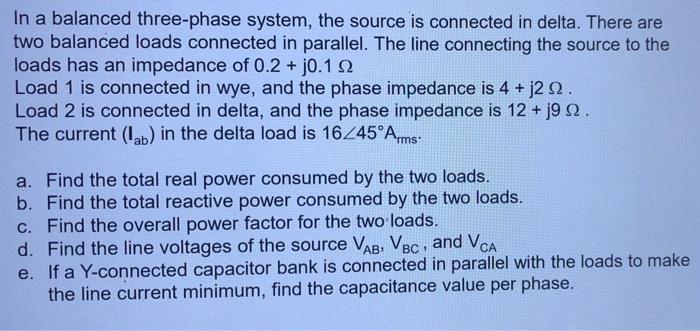

In a balanced three-phase system, the source is connected in delta. There are two balanced loads connected in parallel. The line connecting the source to the loads has an impedance of 0.2 + j0.192 Load 1 is connected in wye, and the phase impedance is 4 + j22. Load 2 is connected in delta, and the phase impedance is 12 + j9 22. The current (Lab) in the delta load is 16245Ams: a. Find the total real power consumed by the two loads. b. Find the total reactive power consumed by the two loads. c. Find the overall power factor for the two loads. d. Find the line voltages of the source VAB, VBC, and VCA e. If a Y-connected capacitor bank is connected in parallel with the loads to make the line current minimum, find the capacitance value per phase
