Question: In a four - point flexural strength test, a 4 0 - inches long with a 2 - inches ( width ) by 5 -

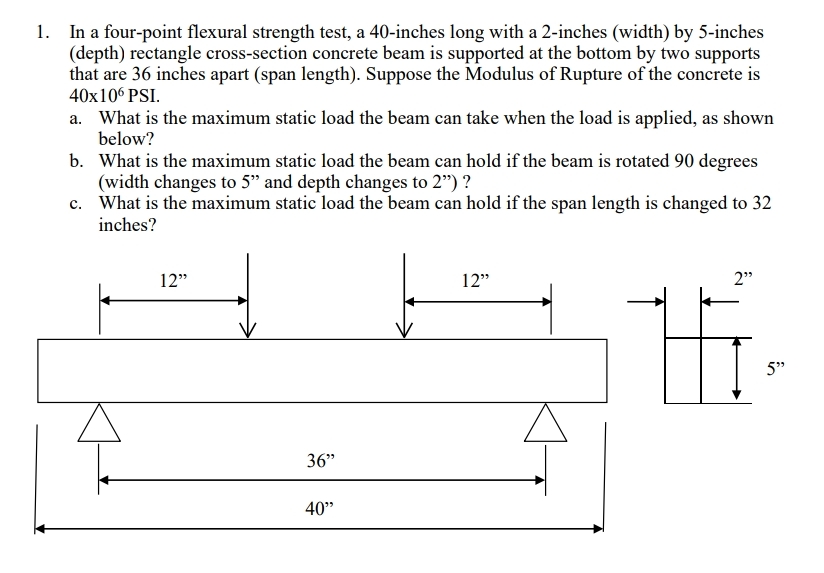

In a four-point flexural strength test, a 40-inches long with a 2-inches (width) by 5-inches (depth) rectangle cross-section concrete beam is supported at the bottom by two supports that are 36 inches apart (span length). Suppose the Modulus of Rupture of the concrete is 40106 PSI.
a. What is the maximum static load the beam can take when the load is applied, as shown below?
b. What is the maximum static load the beam can hold if the beam is rotated 90 degrees (width changes to 5" and depth changes to 2")?
c. What is the maximum static load the beam can hold if the span length is changed to 32 inches?
In a four - point flexural strength test, a 4 0 -
