Question: In each Boolean expression shown below, identify all minterms or maxterms for each function and list them in the appropriate places in a corresponding truth

In each Boolean expression shown below, identify all minterms or maxterms

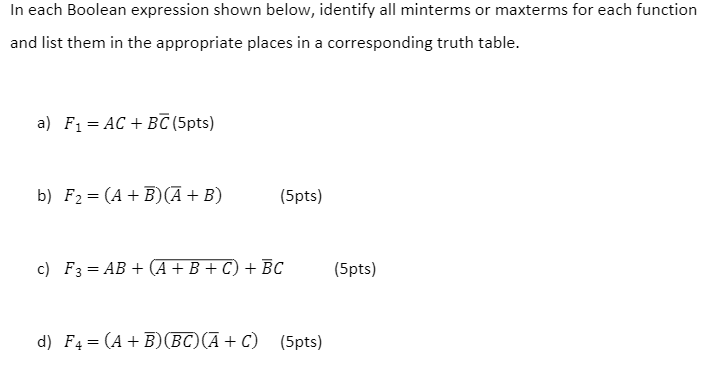

In each Boolean expression shown below, identify all minterms or maxterms for each function and list them in the appropriate places in a corresponding truth table. a) F1 = AC + BC (5pts) b) F2 = (A + B) (A + B) (5pts) c) F3 = AB + A + B + C + BC (5pts) d) F4 = (A + B) (BC) (A+C) (5pts)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

please solve all of them ( # 2 7 , # 2 8 , # 2 9 ) Practice Exercise 2 . 7 Find a product of maxterms expression for F ( x , y , z ) = ( 1 , 2 , 3 , 5 , 7 ) . Answer: F ' = ( 0 , 4 , 6 ) and F = ( x...

1) (Simplification using Boolean Algebra - 10 points) Using the laws of Boolean algebra, and not by using truth tables, prove or disprove the following: a) (X+Y) (X+Y) = X b) (X) (X+Y) = X c) (X)...

1. Consider the function F1 = xy + xy' + yz a. Make a truth table for the function b. Express the truth table as the sum of minterms in shorthand notation. c. Express the truth table as the product...

[2.1] Given the pulse train sent to the input A of an OR gate, draw its output pulse train. 0910 :-D [2.2] Given the pulse train sent to the input A, B and C of an OR gate, draw its output pulse...

HW #8 (Fault Simulation) EE 623 1. Assume you have developed an efficient table-driven event-directed logic simulation system. Consider a fan-out free circuit C having n input lines, m output line, g...

"Fortran, Algol and Lisp invented most programming language concepts 50 years ago; adding the concept of object-orientation suffices to explain all programming languages to date". To what extent is...

Let A, B be sets. Define: (a) the Cartesian product (A B) (b) the set of relations R between A and B (c) the identity relation A on the set A [3 marks] Suppose S, T are relations between A and B, and...

QUIZ... Let D be a poset and let f : D D be a monotone function. (i) Give the definition of the least pre-fixed point, fix (f), of f. Show that fix (f) is a fixed point of f. [5 marks] (ii) Show that...

(a) Use logic simulation to verify that the circuits described in Example 3-18 implement the BCDtoseven-segment converter correctly. (b) Design the converter assuming that the unused input...

Please solve problem6 In the following functions, identify and list all the literals, implicants, implicates, minterms and maxterms that appear (note that there may be none). a. F(a, b, c) = ab +...
