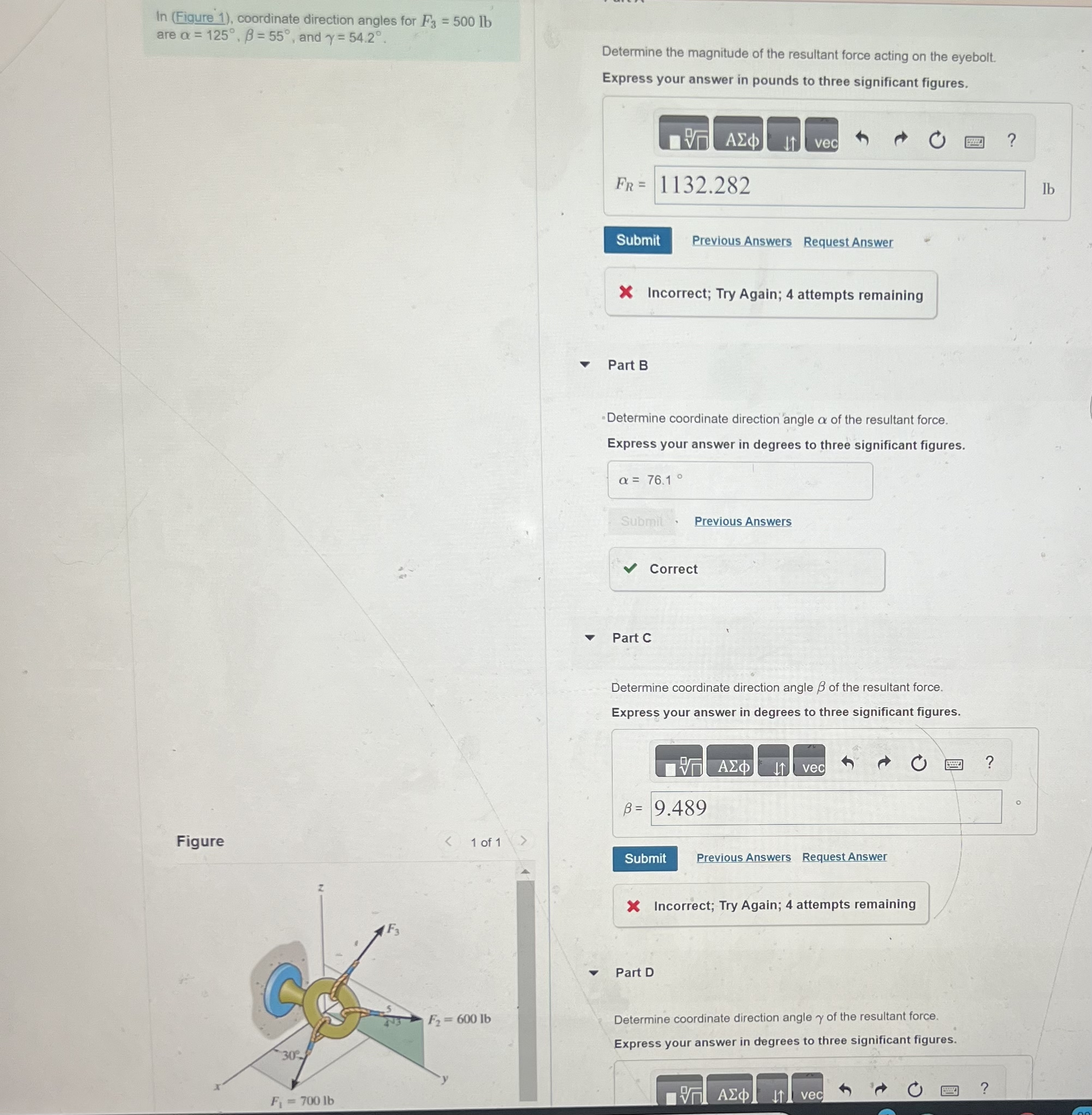

Question: In ( Figure 1 ) , coordinate direction angles for F 3 = 5 0 0 l b are = 1 2 5 , =

In (Figure 1), coordinate direction angles for F3=500lb
are =125,=55, and =54.2.
Determine the magnitude of the resultant force acting on the eyebolt.
Express your answer in pounds to three significant figures.
FR=
Incorrect; Try Again; 4 attempts remaining
Part B
-Determine coordinate direction angle of the resultant force.
Express your answer in degrees to three significant figures.
Previous Answers
Part C
Determine coordinate direction angle of the resultant force.
Express your answer in degrees to three significant figures.
=
Incorrect; Try Again; 4 attempts remaining
Part D
Determine coordinate direction angle of the resultant force.
Express your answer in degrees to three significant figures.
I need help with A,C, and D please.
