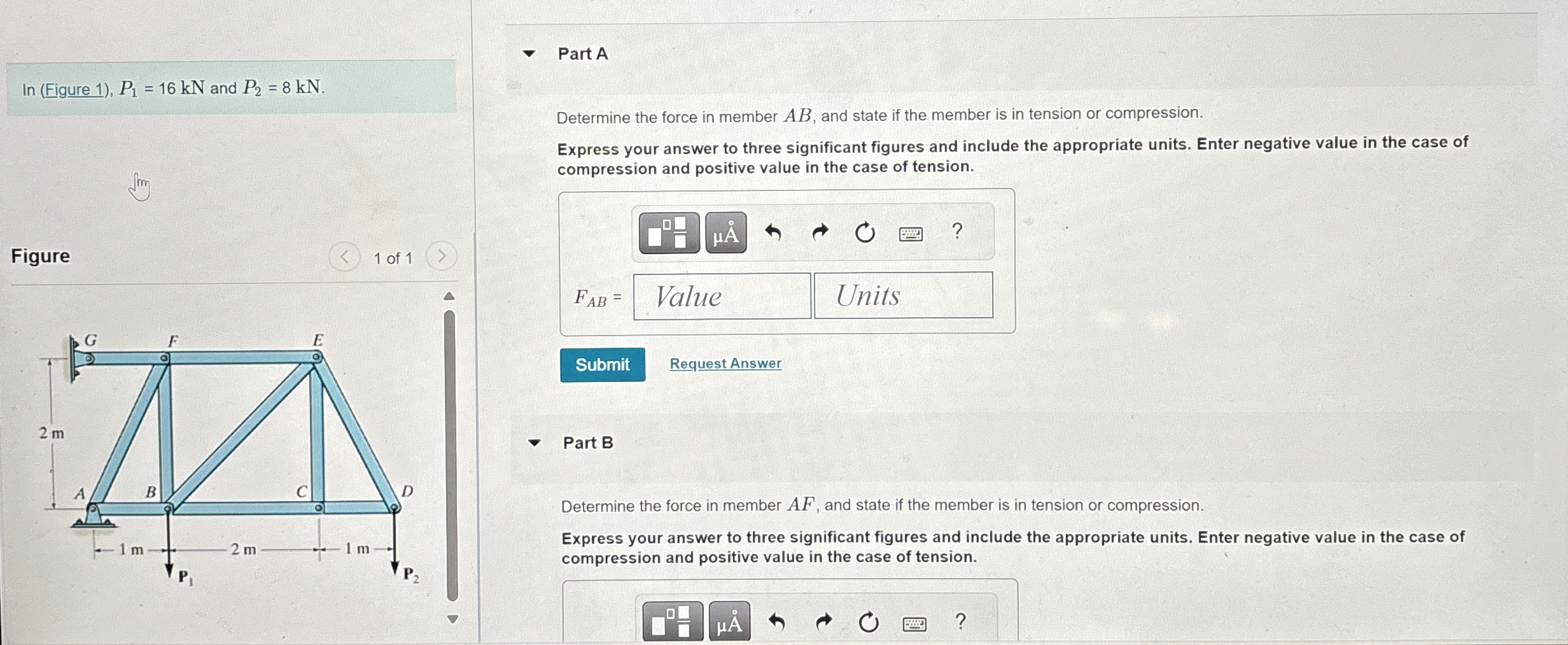

Question: In ( Figure 1 ) , P 1 = 1 6 k N and P 2 = 8 k N . Figure 1 of 1

(

Figure

1), P_{1} = 16 k N

and

P_{2} = 8 k N .

Figure

1

1

q,

Request Answer

Part B

Determine the force in member

A F,

and state if the member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

Find the force in all members.

In ( Figure 1 ) , P 1 = 1 6 k N and P 2 = 8 k N .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
