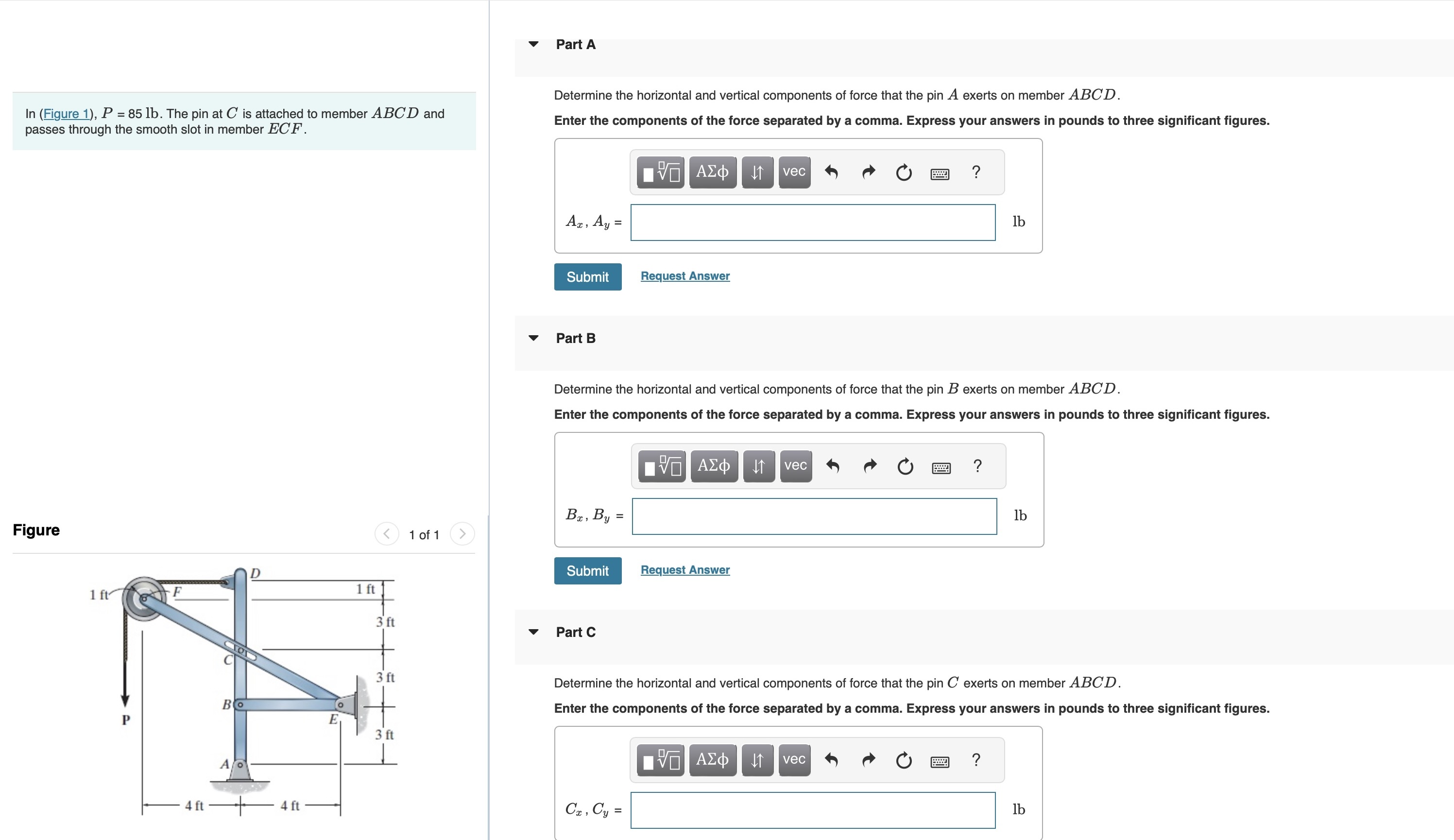

Question: In ( Figure 1 ) , P = 8 5 l b . The pin at C is attached to member ABCD and passes through

In (Figure 1),P=85lb. The pin at C is attached to member ABCD and
passes through the smooth slot in member ECF.
Figure
Determine the horizontal and vertical components of force that the pin A exerts on member ABCD.
Enter the components of the force separated by a comma. Express your answers in pounds to three significant figures.
Ax,Ay=
lb
Request Answer
Part B
Determine the horizontal and vertical components of force that the pin B exerts on member ABCD.
Enter the components of the force separated by a comma. Express your answers in pounds to three significant figures.
Request Answer
Part C
Determine the horizontal and vertical components of force that the pin C exerts on member ABCD.
Enter the components of the force separated by a comma. Express your answers in pounds to three significant figures.
In ( Figure 1 ) , P = 8 5 l b . The pin at C is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
