In $($Figure $1),\backslash$theta

$=60$

$.$

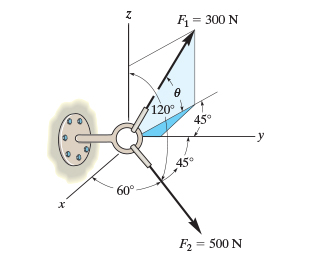

Figure$1$ of $1$

Two forces act on a screw eye attached to a vertical wall. The x axis points out of the screen. The y axis points horizontally to the right. The z axis points vertically upward. The wall is parallel to the x z plane. The screw eye is located at the origin. Force F subscript $1$ equal to $300$ newtons lies in the second octant. The projection of this force vector onto the x y plane makes an angle of $45$ degrees with the positive y axis. The angle between this force vector and its projection onto the x y plane is theta. Force F subscript $2$ equal to $500$ newtons lies in the fifth octant and makes an angle of $60$ degrees with the positive x axis, $45$ degrees with the positive y axis, and $120$ degrees with the positive z axis.

Part A

Determine the coordinate direction angle $\backslash$alpha

of F$1$

$.$

Express your answer in degrees to three significant figures.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

$\backslash$alpha

$=$

$$

Previous AnswersRequest Answer

Incorrect; Try Again; $4$ attempts remaining

Part B

Determine the coordinate direction angle $\backslash$beta

of F$1$

$.$

Express your answer in degrees to three significant figures.

Activate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

$\backslash$beta

$=$

$$

Request Answer

Part C

Determine the coordinate direction angle $\backslash$gamma

of F$1$

$.$

Express your answer in degrees to three significant figures.
