Question: In Figure 2 , ( a ) Determine the shear and moment in the beam as functions of x . ( b ) Draw the

In Figure 2,
(a) Determine the shear and moment in the beam as functions of x.
(b) Draw the shear force and bending moment diagrams.

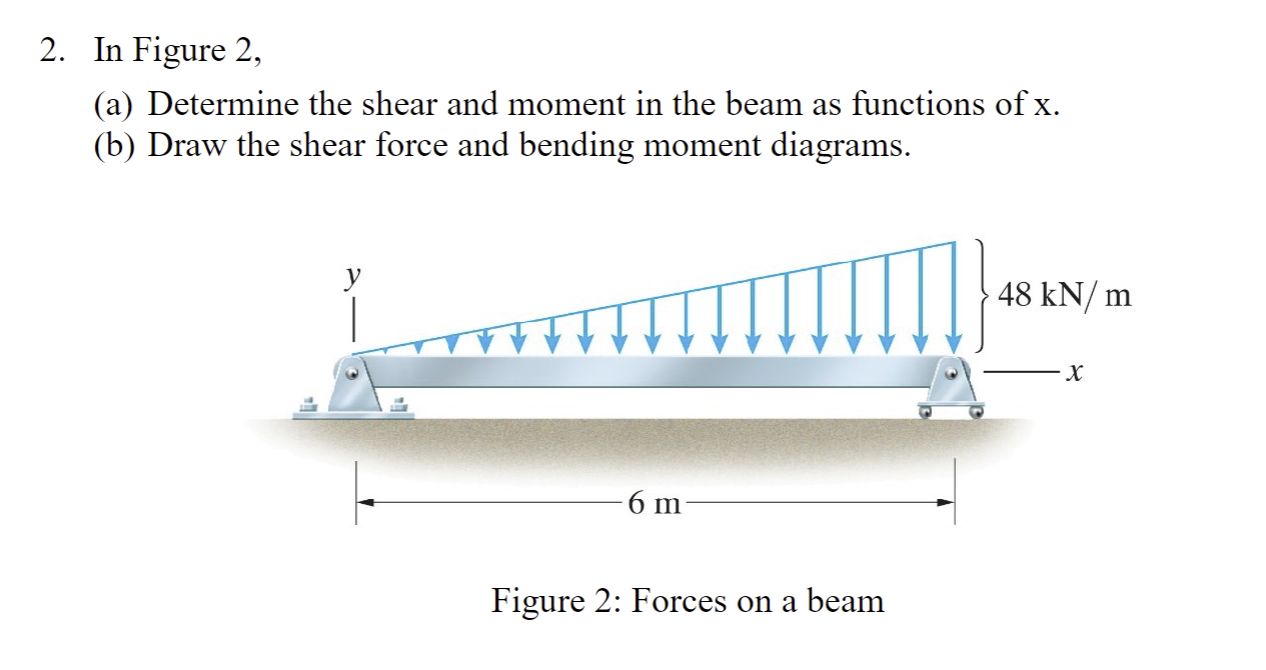

Figure 2: Forces on a beam
In Figure 2 , ( a ) Determine the shear and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

1 1 - 2 . Determine the shear and moment in the beam as functions of x for 1 0 f t , and then draw the shear and moment diagrams for the beam. Problem 1 1 - 2 0 x 4 f t , 4 f t , and 1 0 f t , and...

Q:

Determine the shear and moment in the beam as functions of x, where 0 ยค x

Q:

Draw S.F. and B.M. diagram for beam loaded as shown in figure (6) and determine the shear and moment as functions of x. 50 kN/m 20 kN/m D 2 m 2 m 2 m RA Ro Fig.6.

Q:

4 - 2 2 . Determine the shear and moment in the beam as a function of x , and then draw the shear and moment diagrams for the beam. Problem 4 - 2 2 for 0

Q:

Determine the shear and moment in the shaft as functions of x within the region 125 mm x 725 mm, and then draw the shear and moment diagrams for the shaft. The bearings at A and B exert only vertical...

Q:

a. Draw the overall free body diagram for beam (figure 1) b. Find the reaction forces at E and the tension in the cable. c. Move the reaction forces at E and the tensile force at H to points D and G...

Q:

A solid cylindrical shaft with a diameter of 4 5 mm is subjected to a bending moment of 5 0 0 Nm and a torque of 4 0 0 Nm . Determine the principal stresses and the maximum shear stress at a point on...

Q:

150 lb/ft 200 lb-ft 200 lb-ft A beam supports forces and moment as shown in Figure. The reactions at A and B are shown in figure as well. (A) Define the loading function q(x) using Singularity...

Q:

Figure 1 shows R.R. Moore rotating-beam fatigue testing machine used to determine durability of a material. Figure 2 shows load diagram, shear force and bending moment diagram and stress ratio to...

Q:

A simple beam AB supports two connected wheel loads P and 2P that are distance d apart (see figure). The wheels may be placed at any distance x from the left-hand support of the beam. (a) Determine...

Q:
