Question: In image 1; with given V = V(r) transform; dev 2 dV = 0 r dr Laplace equation; r1 = 1 cm; [A = 1,3

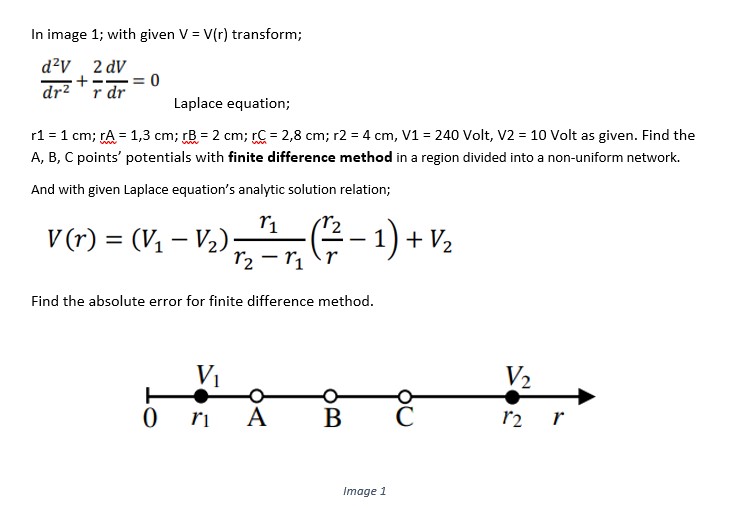

In image 1; with given V = V(r) transform; dev 2 dV = 0 r dr Laplace equation; r1 = 1 cm; [A = 1,3 cm; [B = 2 cm; [C = 2,8 cm; r2 = 4 cm, V1 = 240 Volt, V2 = 10 Volt as given. Find the A, B, C points' potentials with finite difference method in a region divided into a non-uniform network. And with given Laplace equation's analytic solution relation; V (r) = (V1 - V2) 11 :- 1) + V 2 12 - 1 1 Find the absolute error for finite difference method. V1 V2 O Oo O A B Image 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
