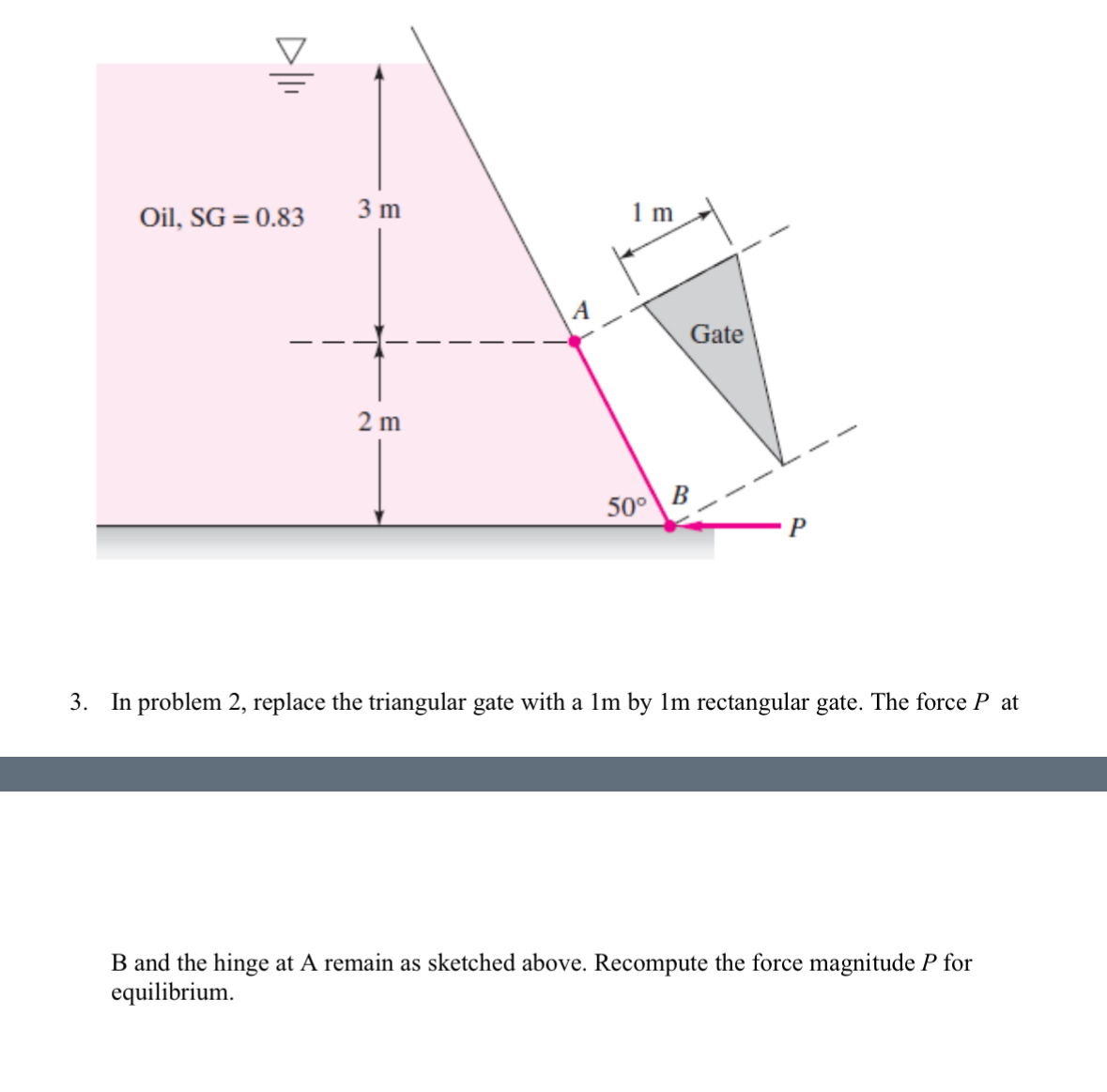

Question: In problem 2 , replace the triangular gate with a 1 m by 1 m rectangular gate. The force P at B and the hinge

In problem 2, replace the triangular gate with a 1 m by 1 m rectangular gate. The force P at
B and the hinge at A remain as sketched above. Recompute the force magnitude P for equilibrim. PLEASE REPLACE THE GATE WITH RECTANGLE PLATE AND SOLVE .
In problem 2 , replace the triangular gate with a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
