Question: ****************************IN PYTHON********************************* Calculate the forces in each member and reaction forces at the supports. Assume AE is constant. Green arrows show far/end nodes. Show all

****************************IN PYTHON********************************* Calculate the forces in each member and reaction forces

****************************IN PYTHON*********************************

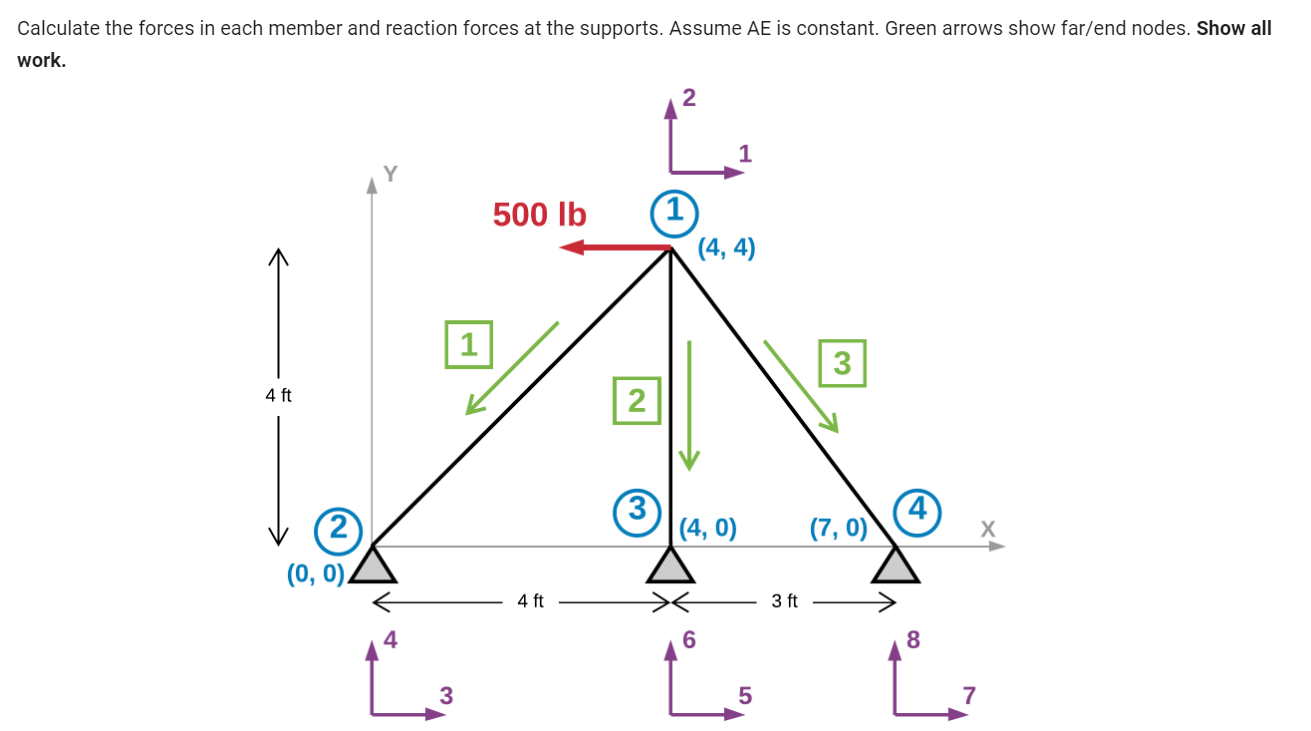

Calculate the forces in each member and reaction forces at the supports. Assume AE is constant. Green arrows show far/end nodes. Show all work. 2 1 500 lb 1 (4,4) 1 3 4 ft 2 (3 4 (4,0) (7,0) (2 (0,0) 4 ft > 3 ft 6 8 3 5 7 Calculate the forces in each member and reaction forces at the supports. Assume AE is constant. Green arrows show far/end nodes. Show all work. 2 1 500 lb 1 (4,4) 1 3 4 ft 2 (3 4 (4,0) (7,0) (2 (0,0) 4 ft > 3 ft 6 8 3 5 7

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
