Question: In the circuit below, the AC source generates a sinusoidal signal of amplitude E = 25 V, R = 4.0 $2, and the frequency of

In the circuit below, the AC source generates a sinusoidal signal

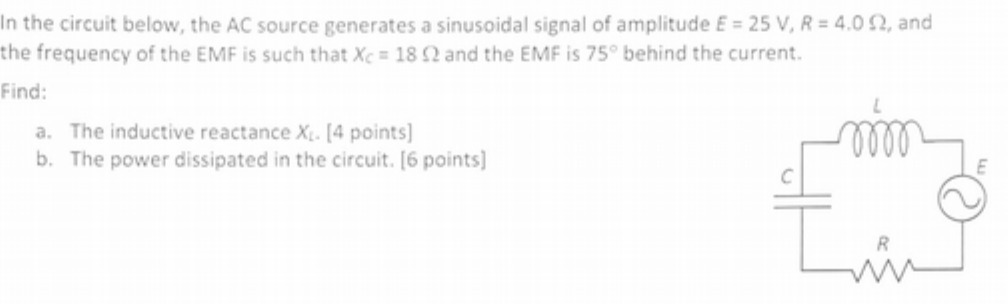

In the circuit below, the AC source generates a sinusoidal signal of amplitude E = 25 V, R = 4.0 $2, and the frequency of the EMF is such that Xc = 18 $2 and the EMF is 750 behind the current. Find: a. The inductive reactance Xz. [4 points] b. The power dissipated in the circuit. [6 points] E R
