Question: In the circuit: Find a . ) Io b . ) Van c . ) Vab d . ) Is the circuit a balanced or

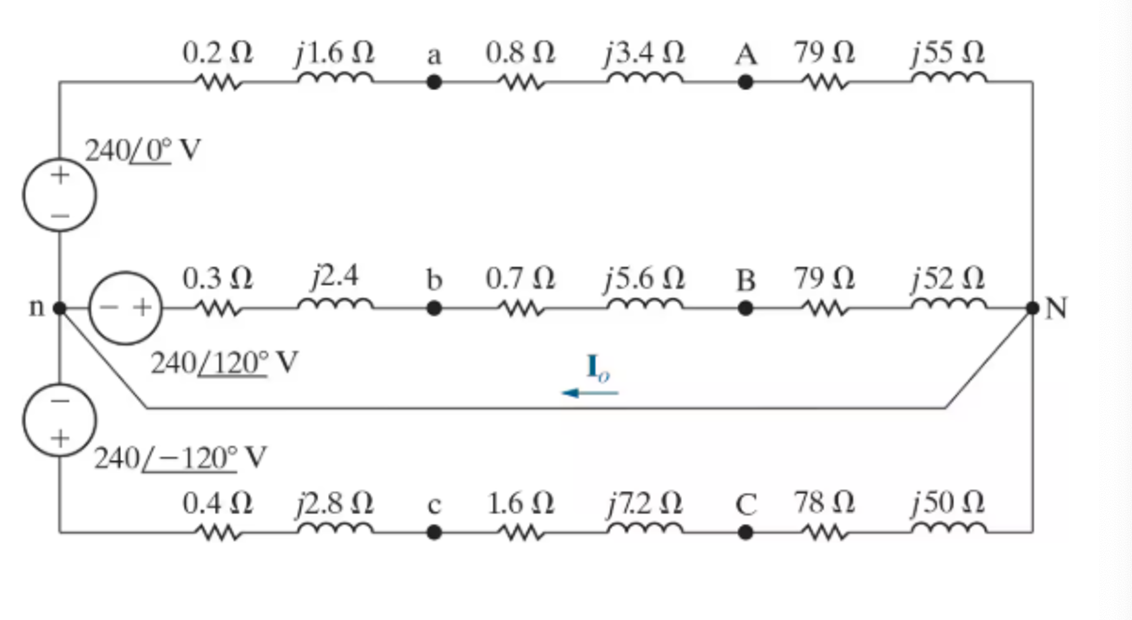

In the circuit: Find
a.) Io
b.) Van
c.) Vab
d.) Is the circuit a balanced or unbalanced three-phase system?
In the circuit: Find a . ) Io b . ) Van c . ) Vab

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
