Question: In the given slab system a . Determine the type of D 1 slab, calculate the internal forces, design and place the reinforcement. ( Loads:

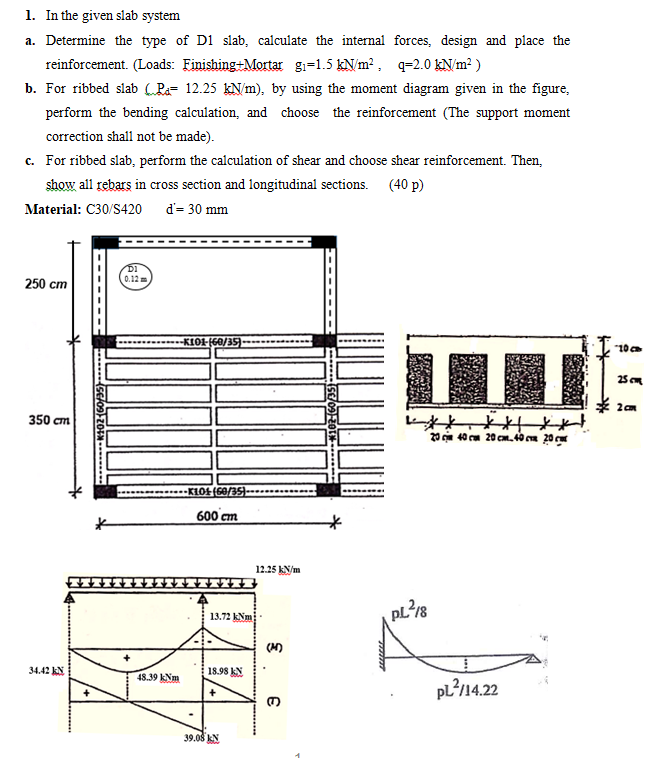

In the given slab system
a. Determine the type of D1 slab, calculate the internal forces, design and place the reinforcement. (Loads: Finishing+Mortar g1=1.5kNm2,q=2.0kNm2)
b. For ribbed slab (Pd=12.25kNm), by using the moment diagram given in the figure, perform the bending calculation, and choose the reinforcement (The support moment correction shall not be made).
c. For ribbed slab, perform the calculation of shear and choose shear reinforcement. Then, show all rebars in cross section and longitudinal sections. (40 p)
Material: C30S420,d'=30mm
