Question: In the truss section below: ( 8 marks ) a . Determine the zero load members b . Determine the force in remaining members and

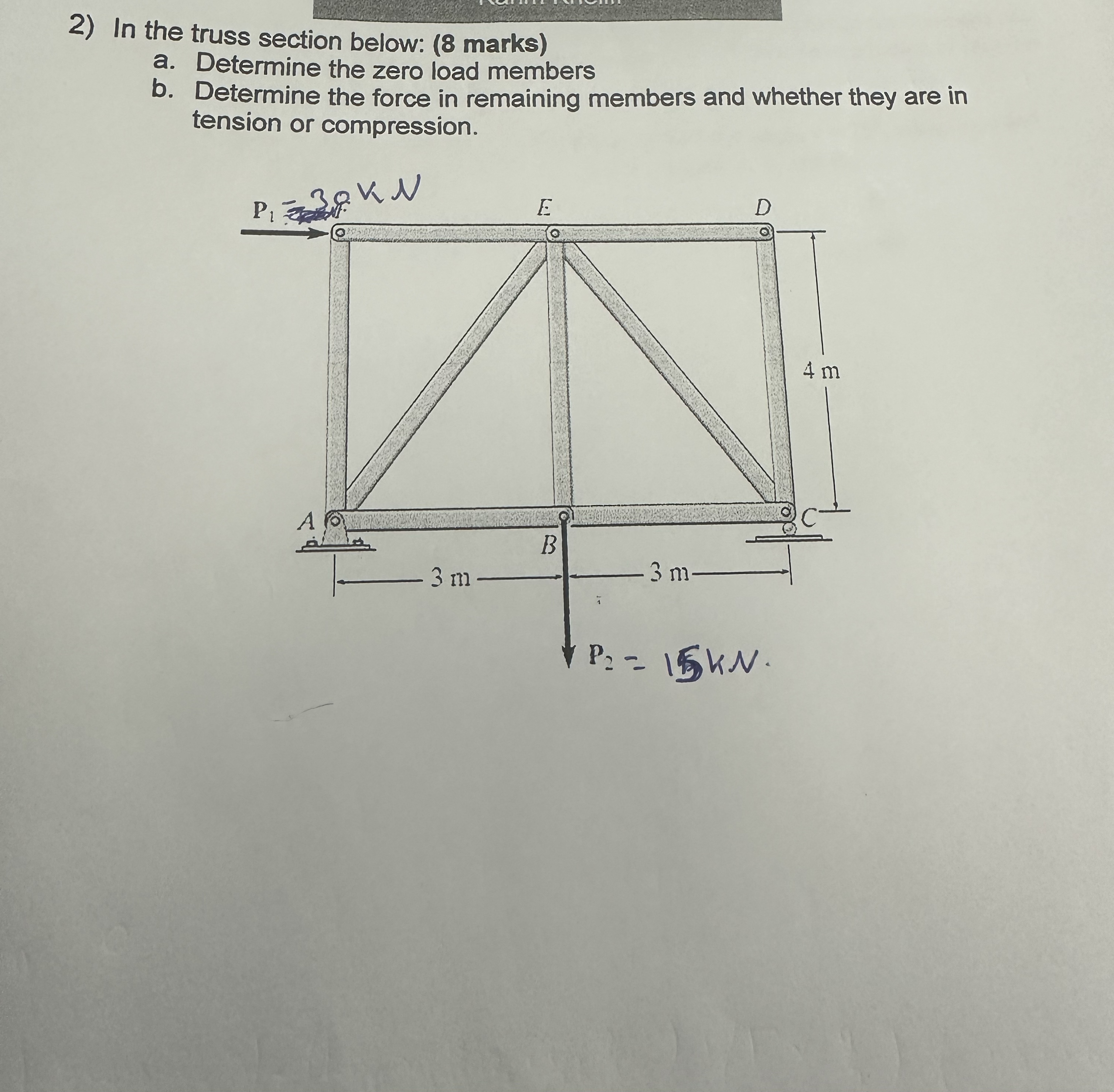

In the truss section below: (8 marks)
a. Determine the zero load members
b. Determine the force in remaining members and whether they are in tension or compression.
In the truss section below: ( 8 marks ) a .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
