In this program, you will implement Dijkstra's algorithm for shortest paths using an adjacency list representation.

The shortest straw

Your program will read in a graph from a file, compute the shortest path between every pair of vertices (where they exist), output a shortest path table, and output individual paths when requested.

The file format will be as follows. The first line will contain the number of vertices n. Following are text descriptions of the vertices 1 through n (50 chars max length). After that, each line consists of 3 ints representing an edge. If there is a directed edge from vertex 1 to vertex 2 with a weight of 10, the line will be: 1 2 10. A zero for the first integer signals the end of the data. This is a valid example:

4 Olsons office Stiber's office STEM office The Commons 1 2 10 1 3 5 2 4 10 2 1 15 3 1 5 3 4 20 0 0 0

You will have a findShortestPath method that computes all shortest paths. A subsequent call to displayAll will output a table formatted as follows:

Description From To Dist Path Olsons office 1 2 10 1 2 1 3 5 1 3 1 4 20 1 2 4 Stiber's office 2 1 15 2 1 2 3 20 2 1 3 2 4 10 2 4 STEM office 3 1 5 3 1 3 2 15 3 1 2 3 4 20 3 4 The Commons 4 1 -- 4 2 -- 4 3 --

The output for a single detailed path should have a similar format, but it should also include the location descriptions on additional lines. For a call to G.display(2, 3);, the output for this graph should be:

2 3 20 2 1 3 Stiber's office Olsons office STEM office

---------------------------------------------------------------

HW3.CPP //DRIVE FILE

#include  #include  #include "Graph.h" using namespace std; //-------------------------- main ------------------------------------------- // Tests the Graph class by reading data from "HW3.txt" // Preconditions: If lab3.txt file exists, it must be formatted // as described in the lab specifications. // Postconditions: The basic functionalities of the Graph class // are used. Should compile, run to completion, and output // correct answers if the classes are implemented correctly. int main() { ifstream infile1("HW3.txt"); if (!infile1) { cerr
---------------------------------------------------

//Graph.h

lass Graph { public: private: static const int MAX_VERTICES = 101; struct EdgeNode { // can change to a class, if desired int adjVertex; // subscript of the adjacent vertex int weight; // weight of edge EdgeNode *nextEdge; }; struct VertexNode { EdgeNode *edgeHead; // head of the list of edges Vertex *data; // store vertex data here }; // array of VertexNodes VertexNode vertices[MAX_VERTICES]; // table of information for Dijkstra's algorithm struct Table { bool visited; // whether vertex has been visited int dist; // shortest known distance from source int path; // previous vertex in path of min dist }; int size; // number of vertices in the graph Table T[MAX_VERTICES][MAX_VERTICES]; // stores visited, distance, path - // two dimensional in order to solve // for all sources };

 -----------------------------------------------------------------

//Graph.cpp

#include  #include "Graph.h" using namespace std; //-------------------------------- buildGraph --------------------------------- // Builds a graph by reading data from an ifstream // Preconditions: infile has been successfully opened and the file contains // properly formated data (according to the program specs) // Postconditions: One graph is read from infile and stored in the object void Graph::buildGraph(ifstream& infile) { infile >> size; // data member stores array size if (infile.eof()) return; infile.ignore(); // throw away ' ' to go to next line // get descriptions of vertices for (int v = 1; v > *vertices[v].data; } // fill cost edge array int src = 1, dest = 1, weight = 1; for (;;) { infile >> src >> dest >> weight; if (src == 0 || infile.eof()) break; insertEdge(src, dest, weight); } }

---------------------------------------

//FILE: HW3.TXT

4 Olson's office Stiber's office STEM office The Commons 1 2 10 1 3 5 2 4 10 2 1 15 3 1 5 3 4 20 0 0 0

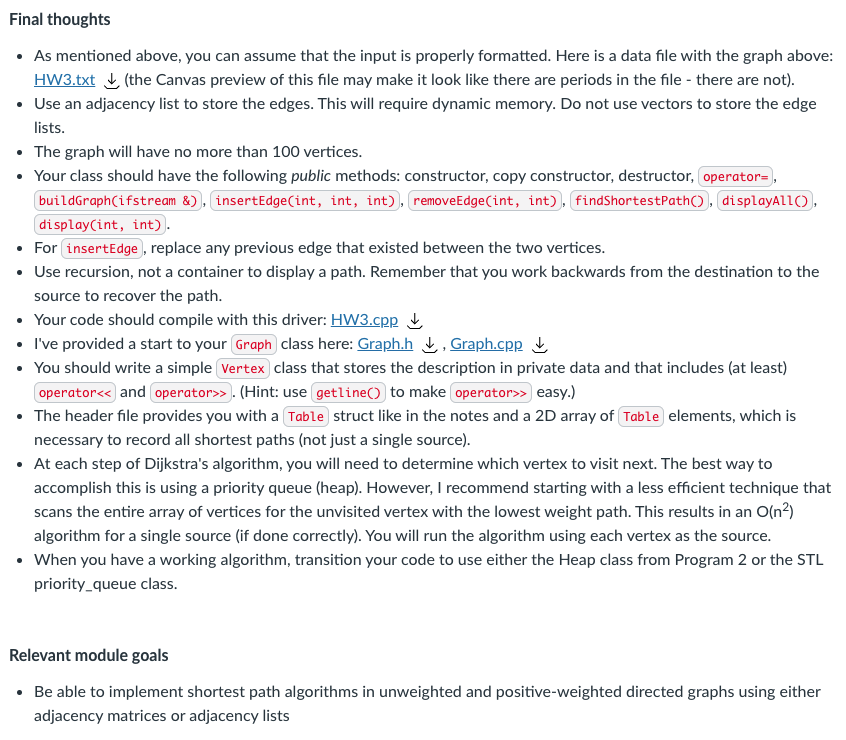

  Final thoughts  As mentioned above, you can assume that the input is properly formatted. Here is a data file with the graph above: HW3.txt (the Canvas preview of this file may make it look like there are periods in the file - there are not).  Use an adjacency list to store the edges. This will require dynamic memory. Do not use vectors to store the edge lists.  The graph will have no more than 100 vertices.  Your class should have the following public methods: constructor, copy constructor, destructor, operators, buildGraph(ifstream &), insertEdge(int, int, int), removeEdge(int, int), findShortestPath(), displayAllo), display(int, int)  For insertEdge , replace any previous edge that existed between the two vertices.  Use recursion, not a container to display a path. Remember that you work backwards from the destination to the source to recover the path.  Your code should compile with this driver: HW3.cpp  I've provided a start to your Graph class here: Graph.h Graph.cpp . You should write a simple Vertex class that stores the description in private data and that includes (at least) operator> . (Hint: use getline() to make operator>> easy.)  The header file provides you with a Table struct like in the notes and a 2D array of Table elements, which is necessary to record all shortest paths (not just a single source).  At each step of Dijkstra's algorithm, you will need to determine which vertex to visit next. The best way to accomplish this is using a priority queue (heap). However, I recommend starting with a less efficient technique that scans the entire array of vertices for the unvisited vertex with the lowest weight path. This results in an O(n2) algorithm for a single source (if done correctly). You will run the algorithm using each vertex as the source.  When you have a working algorithm, transition your code to use either the Heap class from Program 2 or the STL priority_queue class. Relevant module goals Be able to implement shortest path algorithms in unweighted and positive-weighted directed graphs using either adjacency matrices or adjacency lists
