Question: In using the bolt cutter shown, a worker applies two P forces to the handles. Determine the magnitude of the forces exerted by the cutter

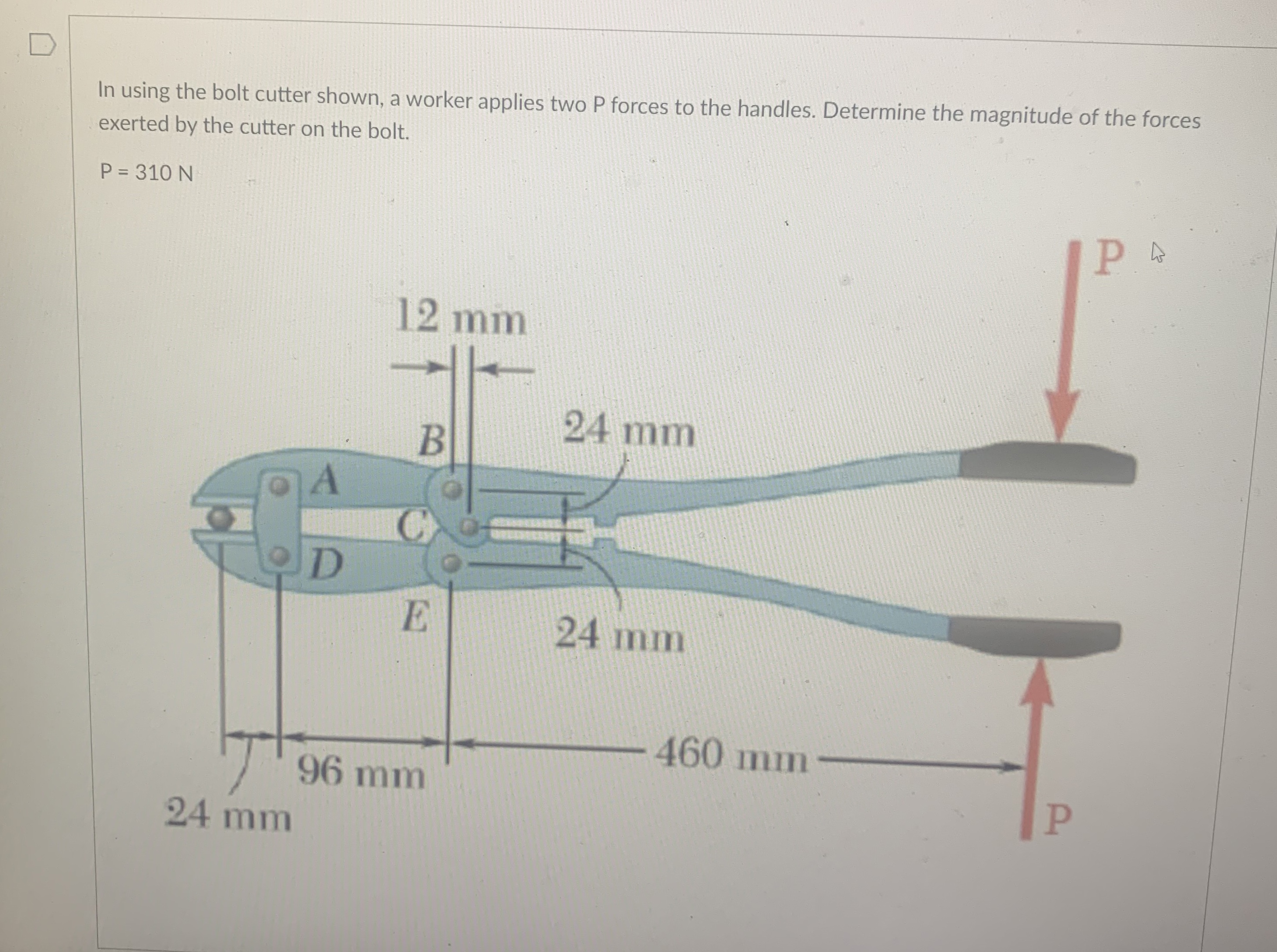

In using the bolt cutter shown, a worker applies two P forces to the handles. Determine the magnitude of the forces exerted by the cutter on the bolt.

P = 310 N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
