Include appropriate hand calculations based on static equilibrium equations and method of joints analysis to determine Support Reactions and Forces in all elements. Use a table of results to show all the forces.Part $1$: Truss Structure Modelling

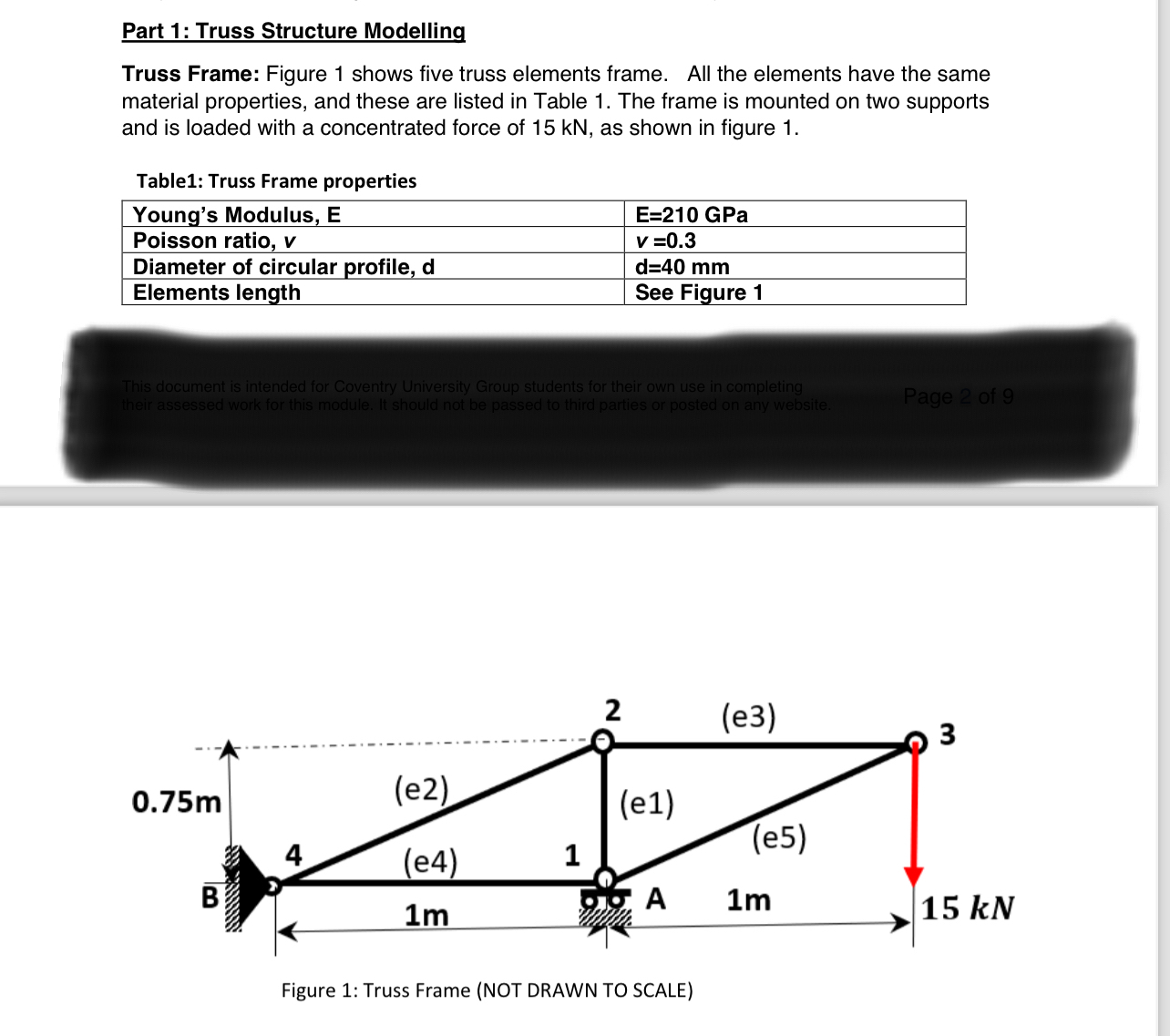

Truss Frame: Figure $1$ shows five truss elements frame. All the elements have the same material properties, and these are listed in Table $1.$ The frame is mounted on two supports and is loaded with a concentrated force of $15$ kN $,$ as shown in figure $1.$

Table$1$: Truss Frame properties

$\backslash$table$[[$Young$\text{'}$s Modulus, $E,E=210$GPa
