Question: indeterminate structures. Can you answer A please Determine the reaction forces of the following statically determinate structures. Plot the bending moment and shear force diagrams

indeterminate structures. Can you answer A please

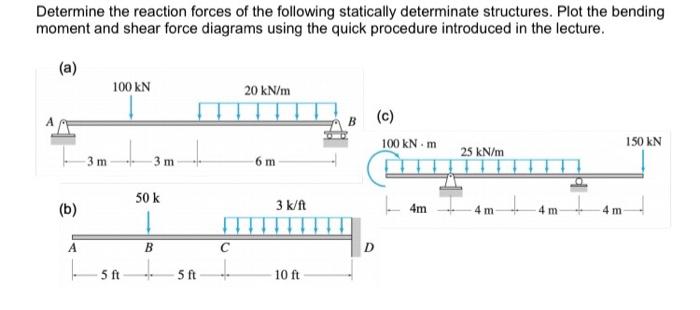

Determine the reaction forces of the following statically determinate structures. Plot the bending moment and shear force diagrams using the quick procedure introduced in the lecture. (a) 100 KN 20 kN/m (c) 100 kNm 150 KN 25 kN/m 3 m 3 m 6m 50 k (b) 3 k/ k 4m 4 m 1 4 m 4 m B D 5 ft 5ft 10 ft

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
