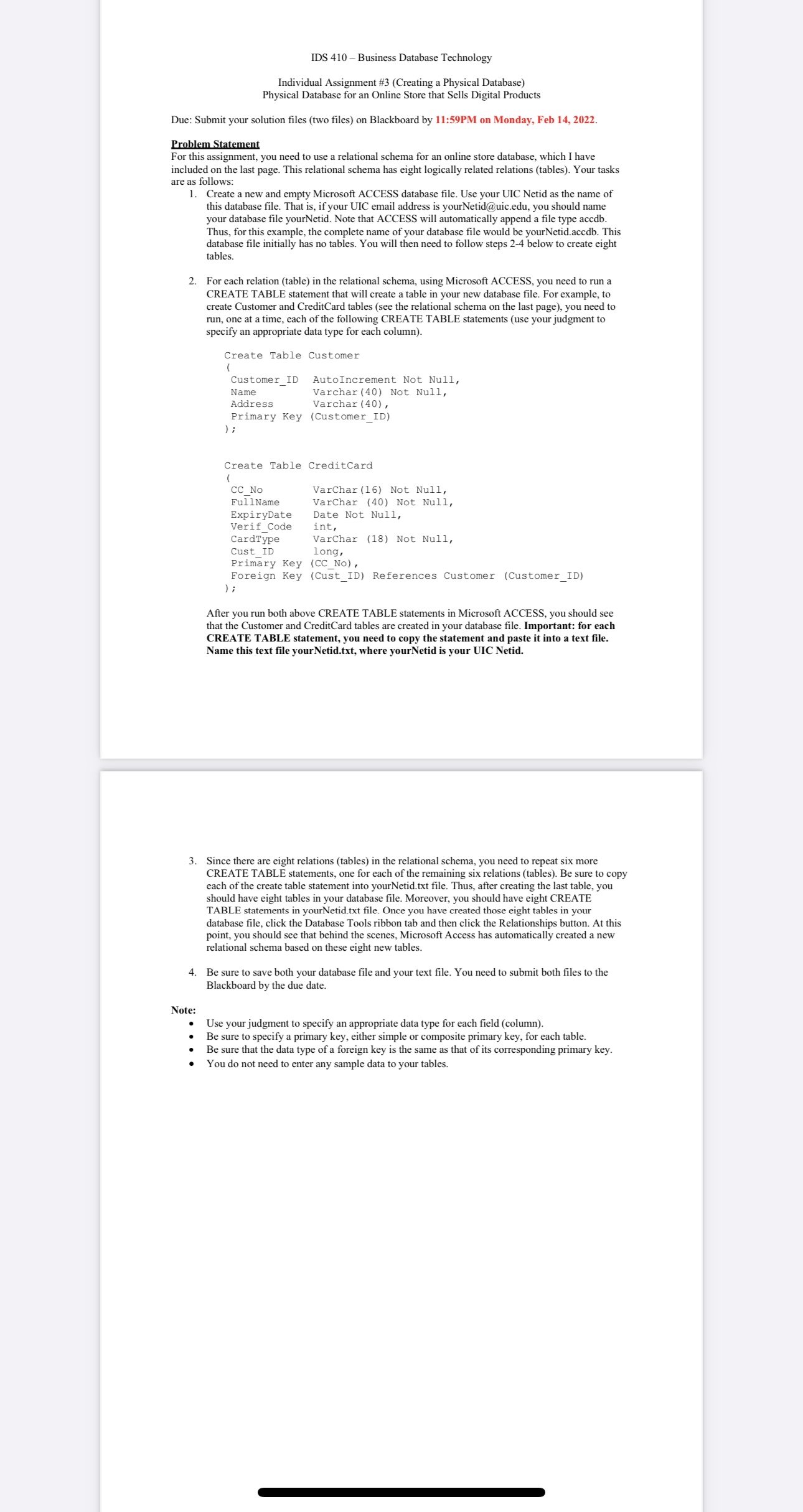

Individual Assignment #$3($Creating a Physical Database$)$

Physical Database for an Online Store that Sells Digital Products

Due: Submit your solution files $($two files$)$ on Blackboard by $11$:$59$PM on Monday, Feb $14,2022.$

Problem Statement

For this assignment, you need to use a relational schema for an online store database, which I have

included on the last page. This relational schema has eight logically related relations $($tables$).$ Your tasks

are as follows:

Create a new and empty Microsoft ACCESS database file. Use your UIC Netid as the name of

this database file. That is$,$ if your UIC email address is

yourNetid@uic.edu, you should name

your database file yourNetid. Note that ACCESS will automatically append a file type accdb

Thus, for this example, the complete name of your database file would be yourNetid.accdb. This

database file initially has no tables. You will then need to follow steps $2-4$ below to create eight

tables.

For each relation $($table$)$ in the relational schema, using Microsoft ACCESS, you need to run a

CREATE TABLE statement that will create a table in your new database file. For example, to

create Customer and CreditCard tables $($see the relational schema on the last page$),$ you need to

run, one at a time, each of the following CREATE TABLE statements $($use your judgment to

specify an appropriate data type for each column$).$

Create Table Customer

$($

Customer$\_$ID AutoIncrement Not Null,

Name $-$ Varchar$(40)$ Not Null,

Address Varchar$(40),$

Primary Key $($Customer$\_$ID$)$

;

Create Table CreditCard

$($

$($

CC$\_$No VarChar$(16)$ Not Null,

FullName VarChar $(40)$ Not Null,

ExpiryDate Date Not Null,

Verif$\_$Code int,

Verif$\_$Code VarChar $(18)$ Not Null,

Cust$\_$ID long,

Prim$$ry Key $($CC$\_$No$)$

Foreign Key $($Cust$\_$ID$)$ References Customer $($Customer$\_$ID$)$

;

After you run both above CREATE TABLE statements in Microsoft ACCESS, you should see

that the Customer and CreditCard tables are created in your database file. Important: for each

CREATE TABLE statement, you need to copy the statement and paste it into a text file.

Name this text file yourNetid.txt$,$ where yourNetid is your UIC Netid.

Since there are eight relations $($tables$)$ in the relational schema, you need to repeat six more

CREATE TABLE statements, one for each of the remaining six relations $($tables$).$ Be sure to copy

each of the create table statement into yourNetid.txt file. Thus, after creating the last table, you

should have eight tables in your database file. Moreover, you should have eight CREATE

TABLE statements in yourNetid.txt file. Once you have created those eight tables in your

database file, click the Database Tools ribbon tab and then click the Relationships button. At this

point, you should see that behind the scenes, Microsoft Access has automatically created a new

relational schema based on these eight new tables.

Be sure to save both your database file and your text file. You need to submit both files to the

Blackboard by the due date.

Note:

Use your judgment to specify an appropriate data type for each field $($column$).$

Be sure to specify a primary key, either simple or composite primary key, for each table.

Be sure that the data type of a foreign key is the same as that of its corresponding primary key.

You do not need to enter any sample data to your tables.
