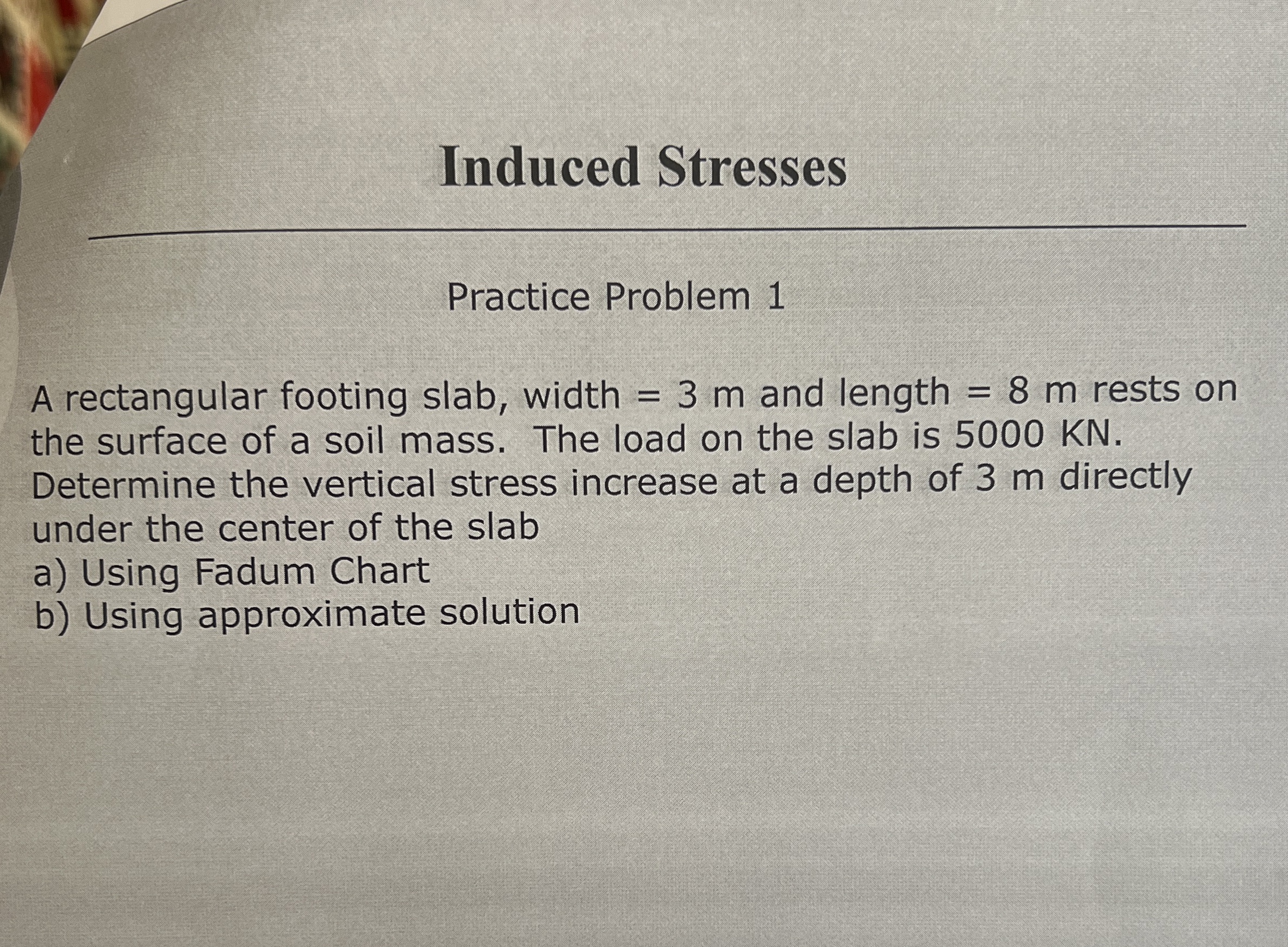

Induced Stresses

Practice Problem $1$

A rectangular footing slab, width $=3m$ and length $=8m$ rests on the surface of a soil mass. The load on the slab is $5000$ KN $.$ Determine the vertical stress increase at a depth of $3$ m directly under the center of the slab

a$)$ Using Fadum Chart

b$)$ Using approximate solution
