Question: Information for problems 2 8 and 2 9 . The planetary speed reducer shown below is used in a cordless screwdriver. An exploded view of

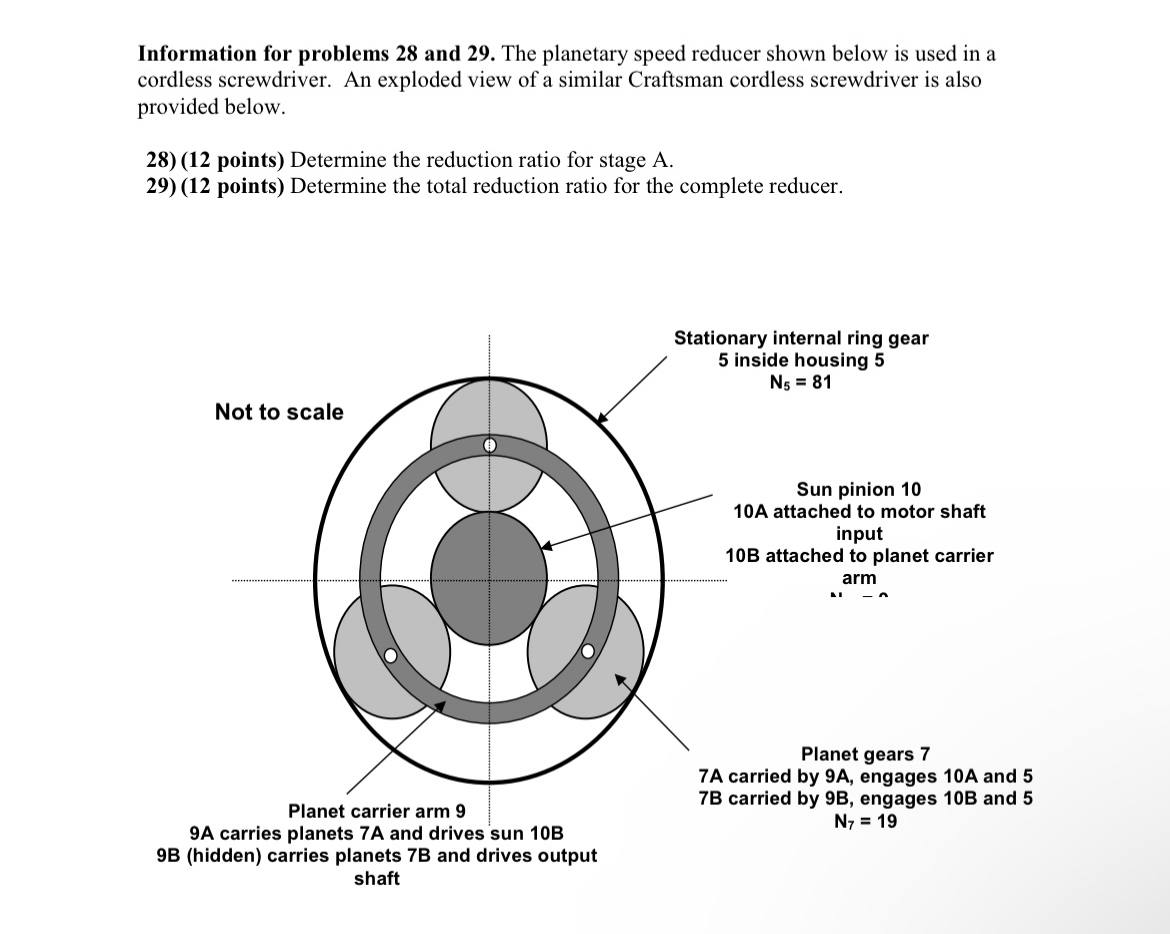

Information for problems 28 and 29. The planetary speed reducer shown below is used in a cordless screwdriver. An exploded view of a similar Craftsman cordless screwdriver is also provided below.
(12 points) Determine the reduction ratio for stage A .
(12 points) Determine the total reduction ratio for the complete reducer.
9A carries planets 7A and drives sun 10B
Planet gears 7
7 A carried by 9A, engages 10A and 57B carried by 9B, engages 10B and 5N7=19
9B(hidden) carries planets 7B and drives output
shaft
