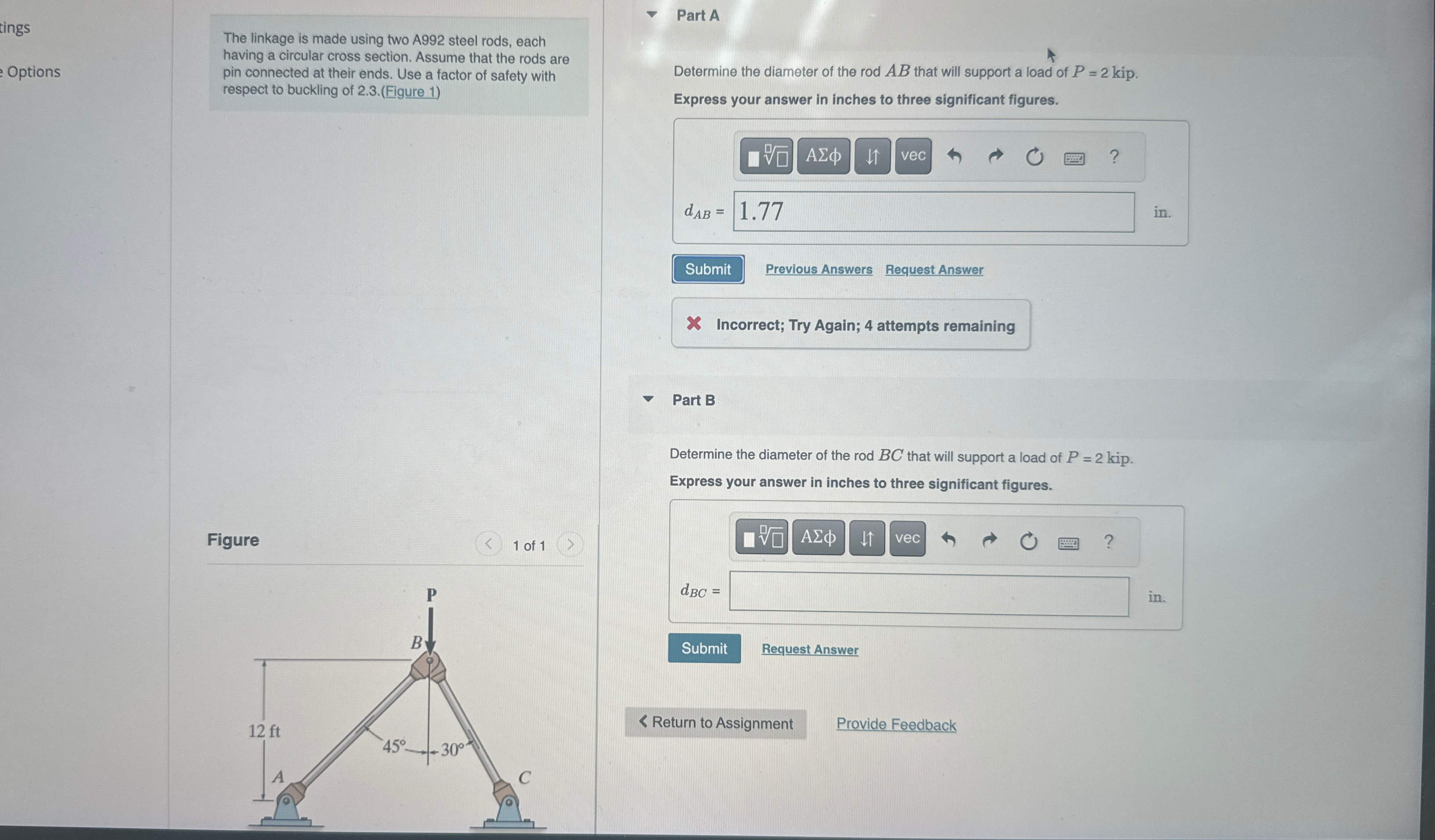

The linkage is made using two A$992$ steel rods, each having a circular cross section. Assume that the rods are pin connected at their ends. Use a factor of safety with respect to buckling of $2\mathrm{.}3.($Figure $1)$

Part A

Determine the diameter of the rod $AB$ that will support a load of $P=2$ kip.

Express your answer in inches to three significant figures.

$$

Previous Answers

Request Answer

Incorrect; Try Again; $4$ attempts remaining

Part B

Determine the diameter of the rod $BC$ that will support a load of $P=2$kip.

Express your answer in inches to three significant figures.

$d_{BC}=$ in$.$
