Instruction: Using the sequence programming concept, create a flowchart and a java program that will read...

Transcribed Image Text:

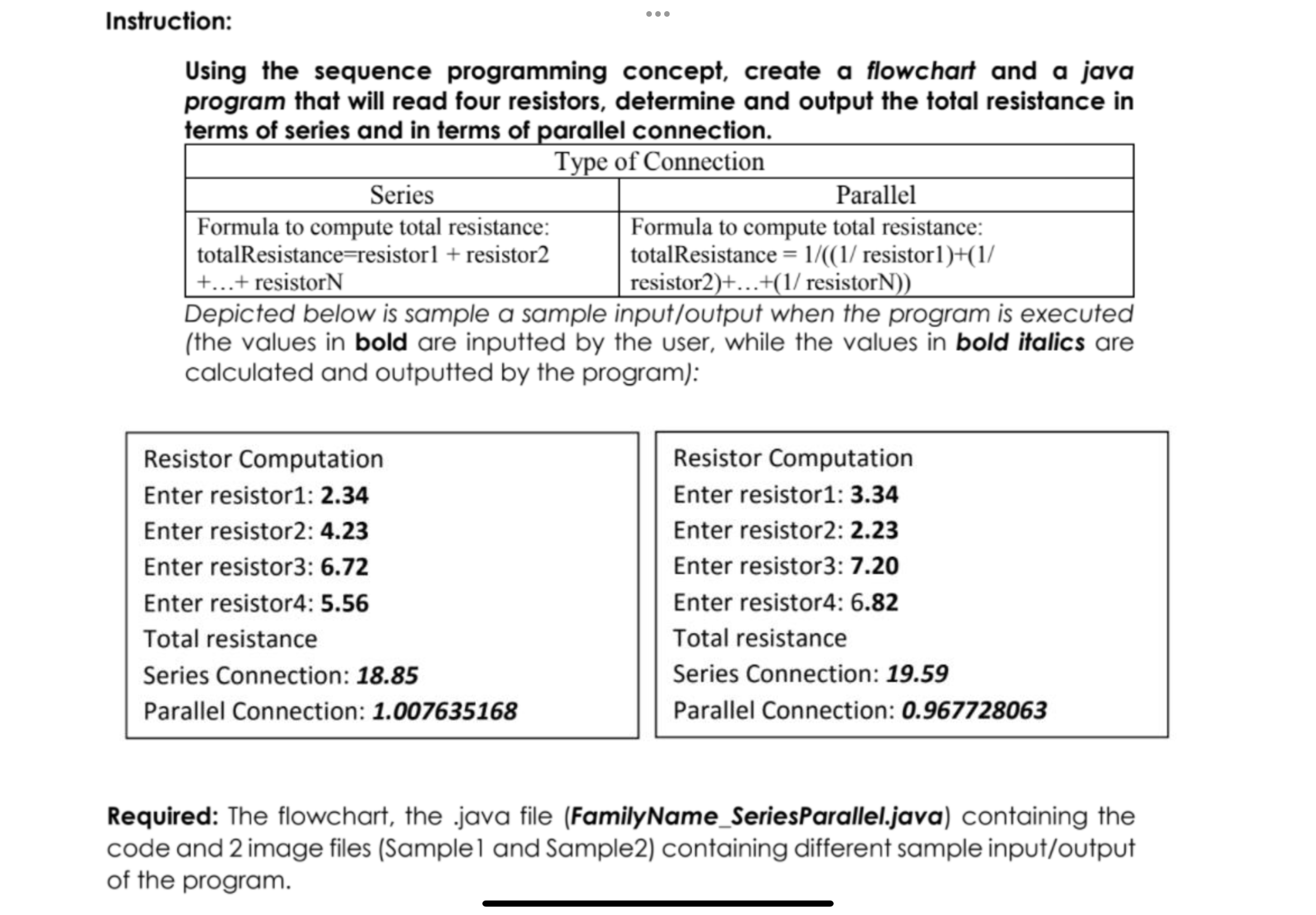

Instruction: Using the sequence programming concept, create a flowchart and a java program that will read four resistors, determine and output the total resistance in terms of series and in terms of parallel connection. Series Formula to compute total resistance: totalResistance-resistor1 + resistor2 +...+ resistorN Type of Connection Parallel Formula to compute total resistance: totalResistance=1/((1/ resistor1)+(1/ resistor2)+...+(1/ resistorN)) Depicted below is sample a sample input/output when the program is executed (the values in bold are inputted by the user, while the values in bold italics are calculated and outputted by the program): Resistor Computation Enter resistor1: 2.34 Enter resistor2: 4.23 Enter resistor3: 6.72 Enter resistor4: 5.56 Total resistance Series Connection: 18.85 Parallel Connection: 1.007635168 Resistor Computation Enter resistor1: 3.34 Enter resistor2: 2.23 Enter resistor3: 7.20 Enter resistor4: 6.82 Total resistance Series Connection: 19.59 Parallel Connection: 0.967728063 Required: The flowchart, the java file (FamilyName_SeriesParallel.java) containing the code and 2 image files (Sample) and Sample2) containing different sample input/output of the program. Instruction: Using the sequence programming concept, create a flowchart and a java program that will read four resistors, determine and output the total resistance in terms of series and in terms of parallel connection. Series Formula to compute total resistance: totalResistance-resistor1 + resistor2 +...+ resistorN Type of Connection Parallel Formula to compute total resistance: totalResistance=1/((1/ resistor1)+(1/ resistor2)+...+(1/ resistorN)) Depicted below is sample a sample input/output when the program is executed (the values in bold are inputted by the user, while the values in bold italics are calculated and outputted by the program): Resistor Computation Enter resistor1: 2.34 Enter resistor2: 4.23 Enter resistor3: 6.72 Enter resistor4: 5.56 Total resistance Series Connection: 18.85 Parallel Connection: 1.007635168 Resistor Computation Enter resistor1: 3.34 Enter resistor2: 2.23 Enter resistor3: 7.20 Enter resistor4: 6.82 Total resistance Series Connection: 19.59 Parallel Connection: 0.967728063 Required: The flowchart, the java file (FamilyName_SeriesParallel.java) containing the code and 2 image files (Sample) and Sample2) containing different sample input/output of the program.
