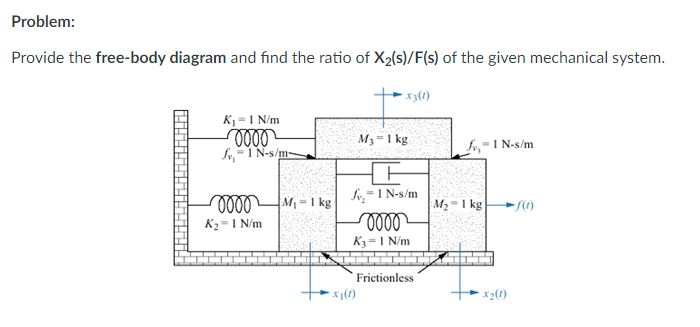

Question: Instructions: Analyze the given problem. Solve the given problem using manual method. (Mesh Analysis) and Free Body Diagram f

Instructions:

  1. Analyze the given problem.
  2. Solve the given problem using manual method. (Mesh Analysis) and Free Body Diagram
Instructions:Analyze the given problem.Solve the given problem using manual method. (Mesh Analysis)
