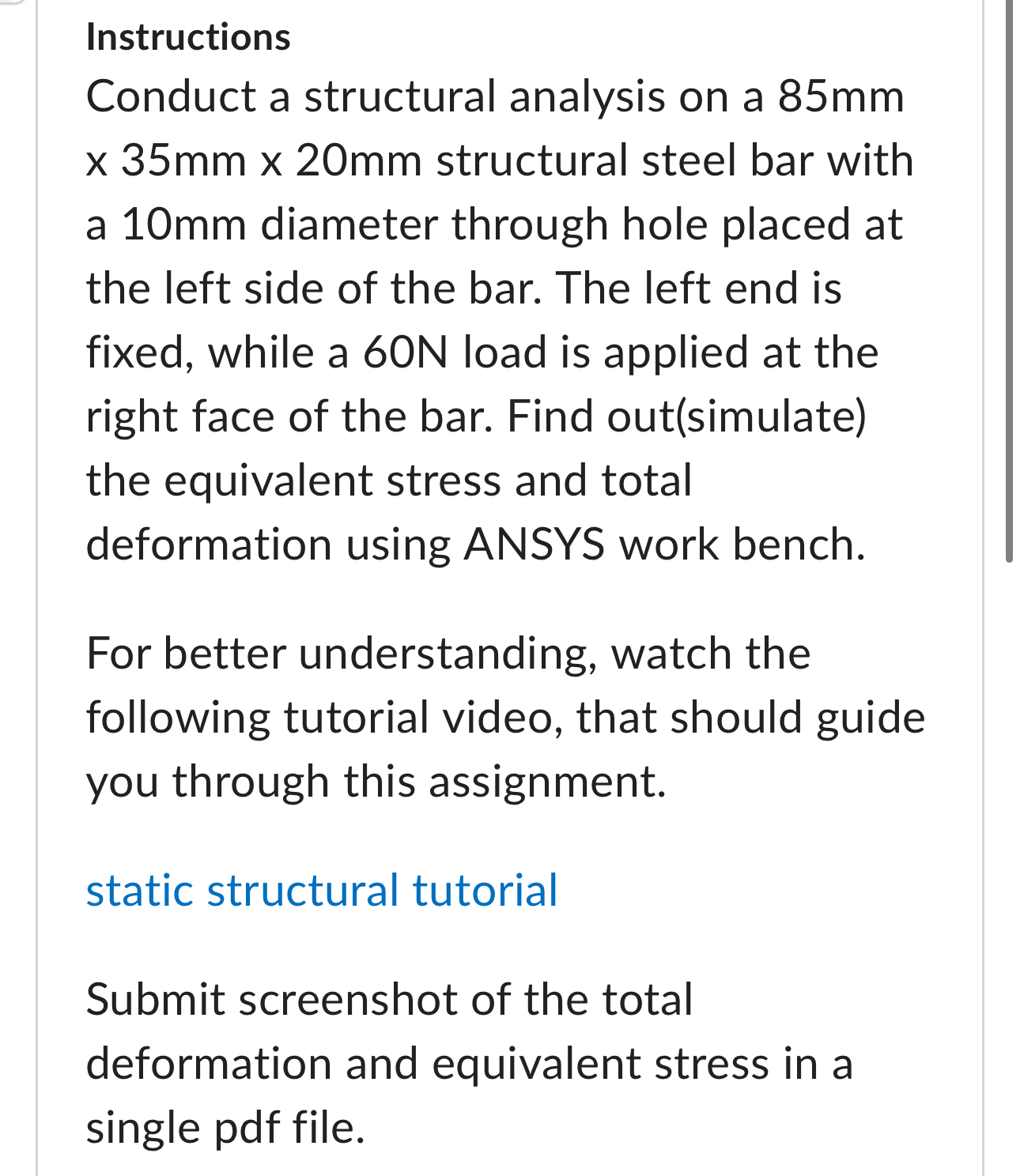

Instructions: Please do this in NX$12$ and include photos.

Conduct a structural analysis on a $85$ mm $35mm20mm$ structural steel bar with a $10$ mm diameter through hole placed at the left side of the bar. The left end is fixed, while a $60$ N load is applied at the right face of the bar. Find out$($simulate$)$ the equivalent stress and total deformation using ANSYS work bench.

For better understanding, watch the following tutorial video, that should guide you through this assignment.

static structural tutorial

Submit screenshot of the total deformation and equivalent stress in a single pdf file.
