Instructions

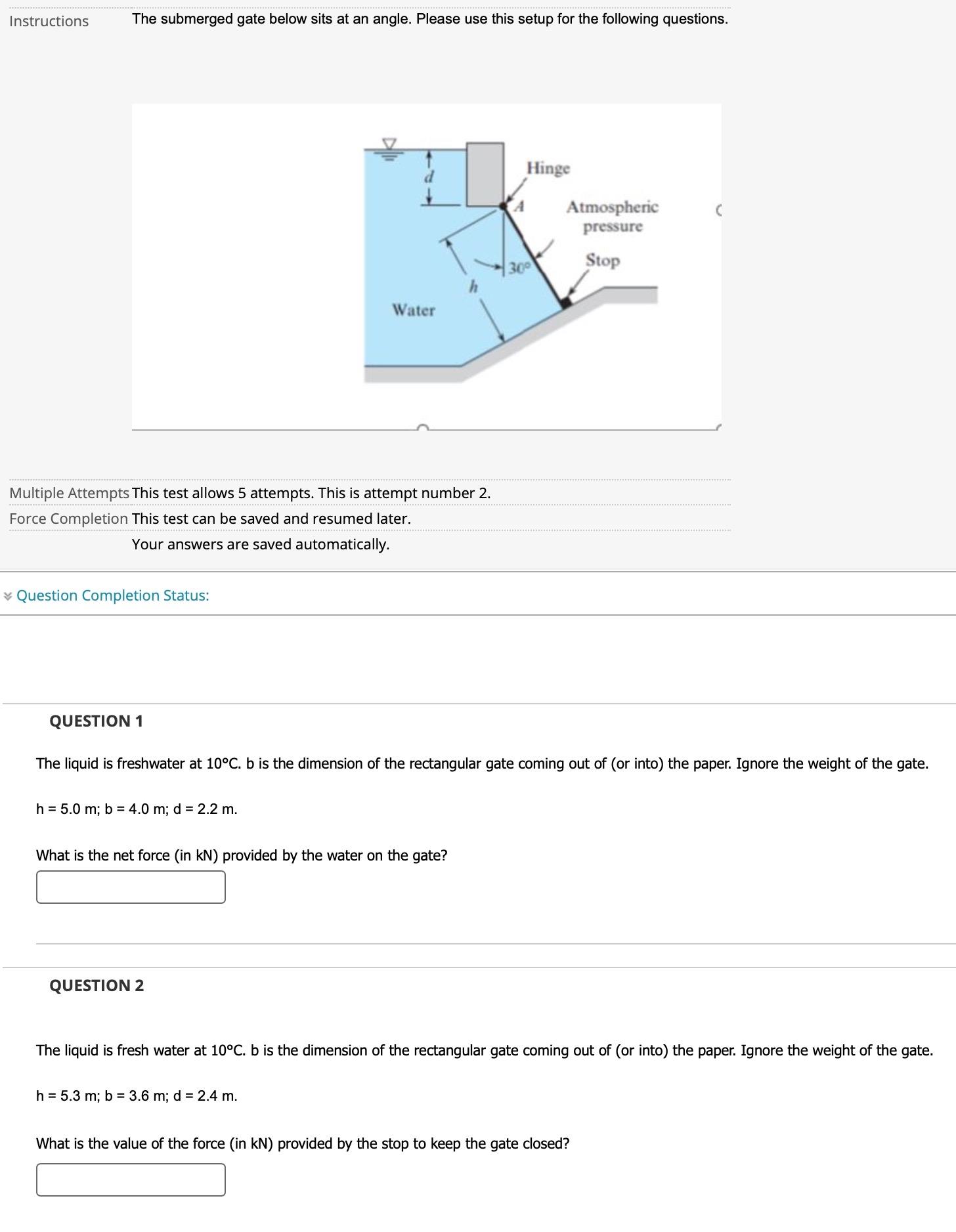

The submerged gate below sits at an angle. Please use this setup for the following questions.

Multiple Attempts This test allows $5$ attempts. This is attempt number $2.$

Force Completion This test can be saved and resumed later.

Your answers are saved automatically.

~~ Question Completion Status:

QUESTION $1$

The liquid is freshwater at $10C.b$ is the dimension of the rectangular gate coming out of $($or into$)$ the paper. Ignore the weight of the gate.

$h=5\mathrm{.}0m$;$b=4\mathrm{.}0m$;$d=2\mathrm{.}2m.$

What is the net force $($in $kN)$ provided by the water on the gate?

QUESTION $2$

The liquid is fresh water at $10C.b$ is the dimension of the rectangular gate coming out of $($or into$)$ the paper. Ignore the weight of the gate.

$h=5\mathrm{.}3m$;$b=3\mathrm{.}6m$;$d=2\mathrm{.}4m.$

What is the value of the force $($in $kN)$ provided by the stop to keep the gate closed?
