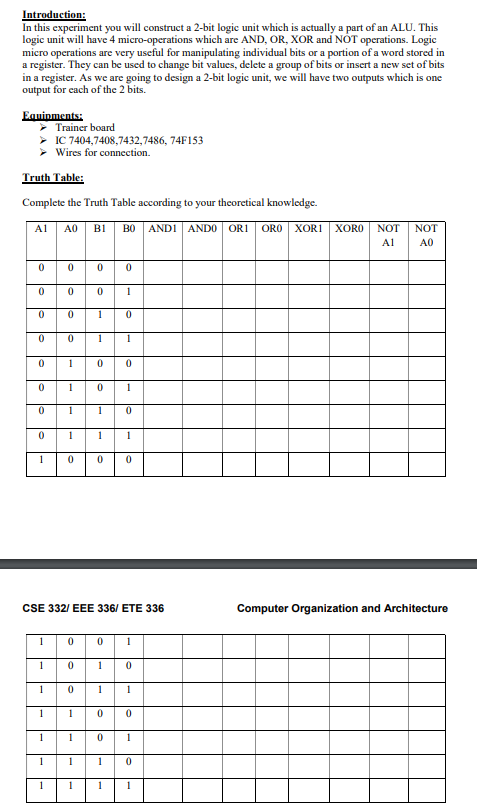

Introduction: In this experiment you will construct a 2-bit logic unit which is actually a part of an ALU. This logic unit will have 4 micro-operations which are AND, OR, XOR and NOT operations. Logic micro operations are very useful for manipulating individual bits or a portion of a word stored in a register. They can be used to change bit values, delete a group of bits or insert a new set of bits in a register. As we are going to design a 2-bit logic unit, we will have two outputs which is one output for each of the 2 bits. Eauinments: Trainer board IC 7404,7408,7432,7486,74F153 Wires for connection. Truth Table: Complete the Truth Table according to your theoretical knowledge. CSE 332/ EEE 336/ ETE 336 Computer Organization and Architecture 1) Place the ICs on the trainer board. 2) Connect Vce and ground to the respective pins of IC. 3) Connect the inputs with the switches and the outputs with LEDs. 4) Apply various combinations of inputs and observe the outputs. 5) Verify the experimental outputs with the Truth Table
