Question: Introduction In this simulation you explore magnetic fields and their effect, through the Lorentz force law, on charged particles. 1 The Magnet Open the simulation

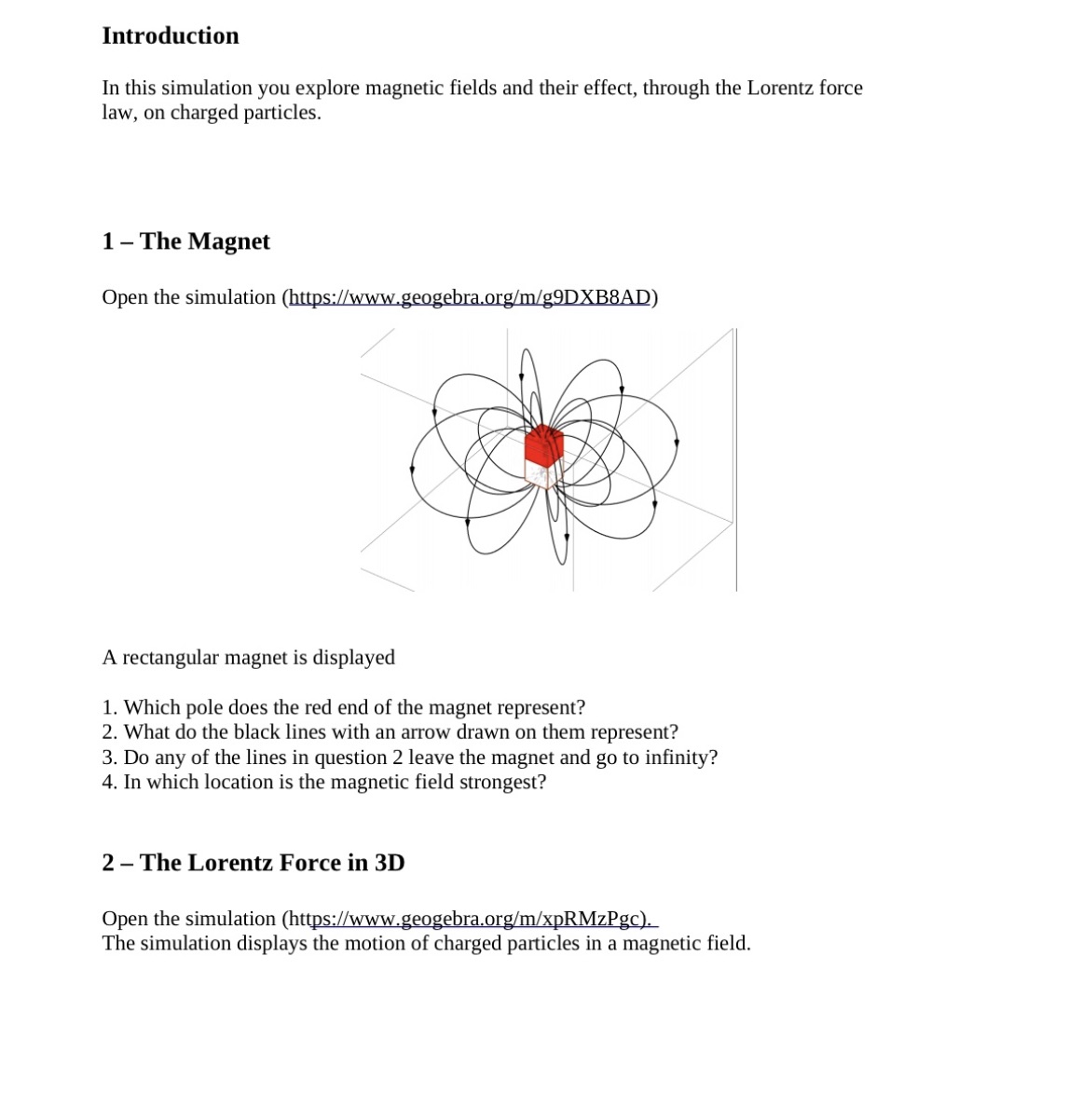

Introduction In this simulation you explore magnetic fields and their effect, through the Lorentz force law, on charged particles. 1 The Magnet Open the simulation ( ' ) A rectangular magnet is displayed 1. Which pole does the red end of the magnet represent? 2. What do the black lines with an arrow drawn on them represent? 3. Do any of the lines in question 2 leave the magnet and go to infinity? 4. In which location is the magnetic field strongest? 2 The Lorentz Force in 3D Open the simulation (https:ffwwwgeogebraorg/mfprMzPgc]. The simulation displays the motion of charged particles in a magnetic field
