INTRODUCTION TO CIVIL & ENVIRONMENTAL ENGINEERING

TUTORIAL WEEK $6$

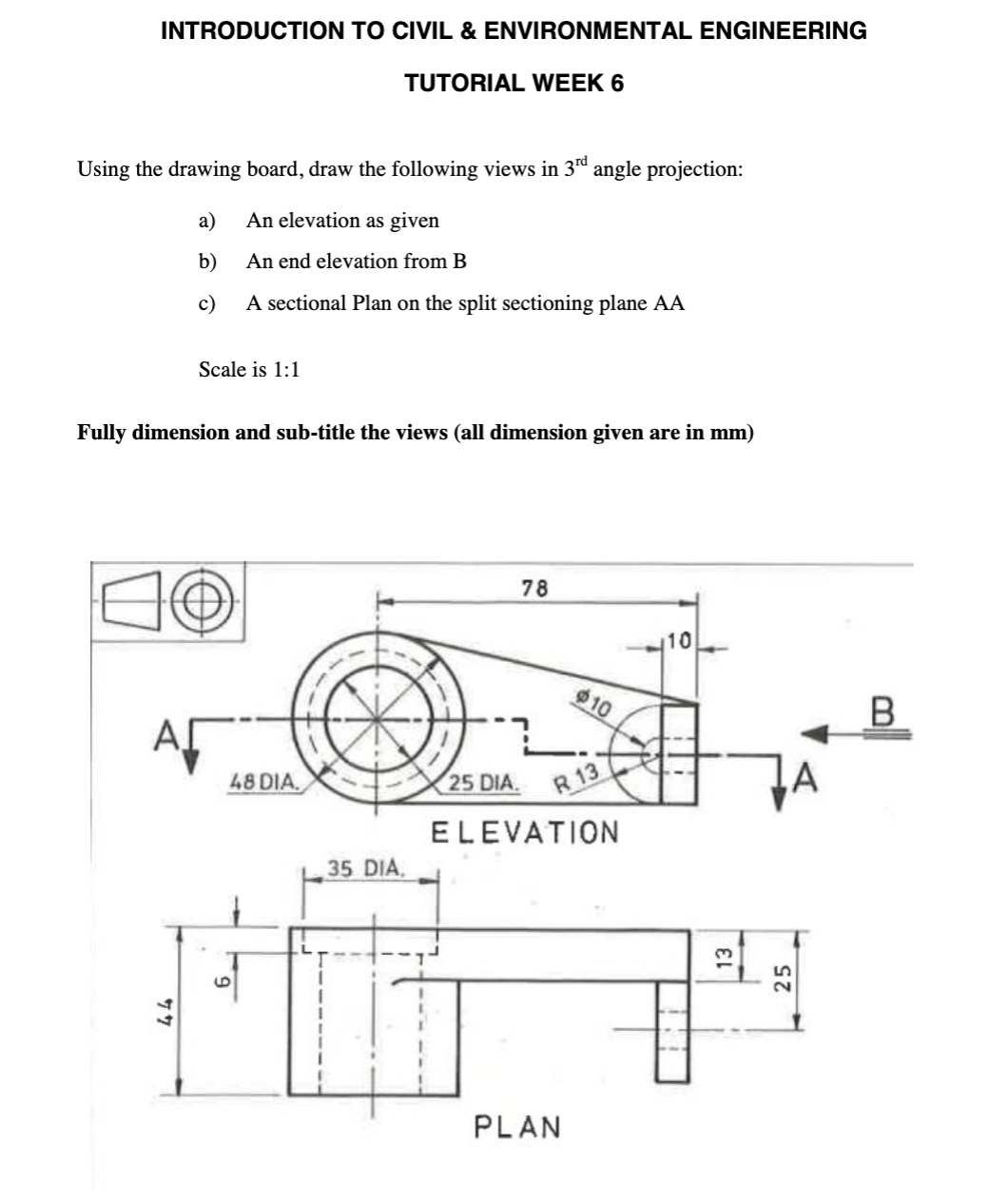

Using the drawing board, draw the following views in $3^{rd}$ angle projection:

a$)$ An elevation as given

b$)$ An end elevation from $B$

c$)$ A sectional Plan on the split sectioning plane AA

Scale is $1$:$1$

Fully dimension and sub$-$title the views $($all dimension given are in $mm)$Using the drawing board, draw the following views in $3$rd angle projection: a$)$ An elevation as given b$)$ An end elevation from B C$)$ A sectional Plan on the split sectioning plane AA Scale is $1$:$1$ Fully dimension and sub$-$title the views $($all dimension given are in mm$)$
