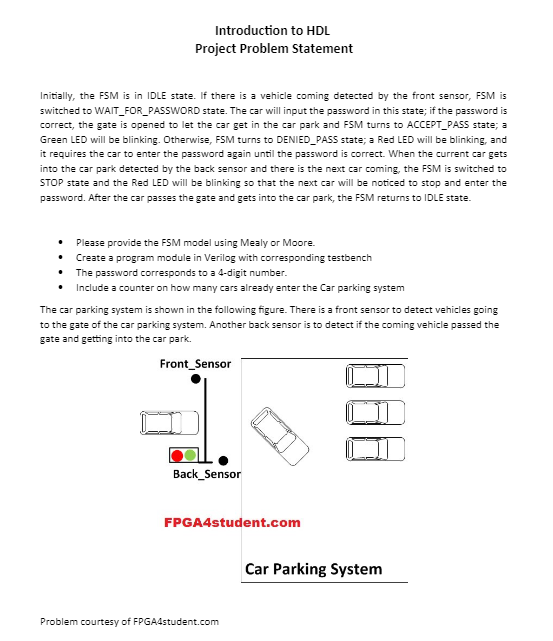

Introduction to HDL

Project Problem Statement

Initially, the FSM is in IDLE state. If there is a vehicle coming detected by the front sensor$,$ FSM is

switched to WAIT$\_$FOR$\_$PASSWORD state. The car will input the password in this state; if the password is

correct, the gate is opened to let the car get in the car park and FSM turns to ACCEPT$\_$PASS state; a

Green LED will be blinking. Otherwise, FSM turns to DENIED$\_$PASS state; a Red LED will be blinking, and

it requires the car to enter the password again until the password is correct. When the current car gets

into the car park detected by the back sensor and there is the next car coming, the FSM is switched to

STOP state and the Red LED will be blinking so that the next car will be noticed to stop and enter the

password. After the car passes the gate and gets into the car park, the FSM returns to IDLE state.

Please provide the FSM model using Mealy or Moore.

Create a program module in Verilog with corresponding testbench

The password corresponds to a $4-$digit number.

Include a counter on how many cars already enter the Car parking system

The car parking system is shown in the following figure. There is a front sensor to detect vehicles going

to the gate of the car parking system. Another back sensor is to detect if the coming vehicle passed the

gate and getting into the car park.

Car Parking System

PROVIDE SCREENSHOT OF THE PROGRAM WORKING! OTHERWISE I WILL DOWNVOTE
