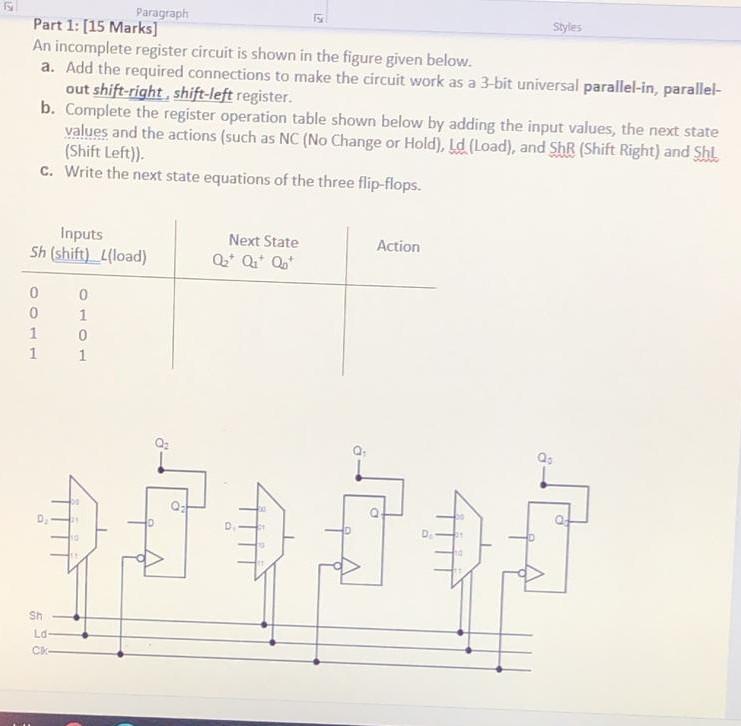

S 15 Paragraph Styles Part 1: [15 Marks) An incomplete register circuit is shown in the figure given below. a. Add the required connections to make the circuit work as a 3-bit universal parallel-in, parallel- out shift-right shift-left register. b. Complete the register operation table shown below by adding the input values, the next state values and the actions (such as NC (No Change or Hold), Ld (Load), and ShR (Shift Right) and ShL (Shift Left)) C. Write the next state equations of the three flip-flops. Inputs Sh (shift) L(load) Next State 0,* Q. Q. Action 0 0 1 1 0 1 0 1 Q. Q: D D Sh LO ck
