Question: It's about dynamics, is the angular velocity w(ab) and w(ba) the same in this question? It's about finding the angular velocity of Link AB, but

It's about dynamics, is the angular velocity w(ab) and w(ba) the same in this question? It's about finding the angular velocity of Link AB, but only the w(ab) is found

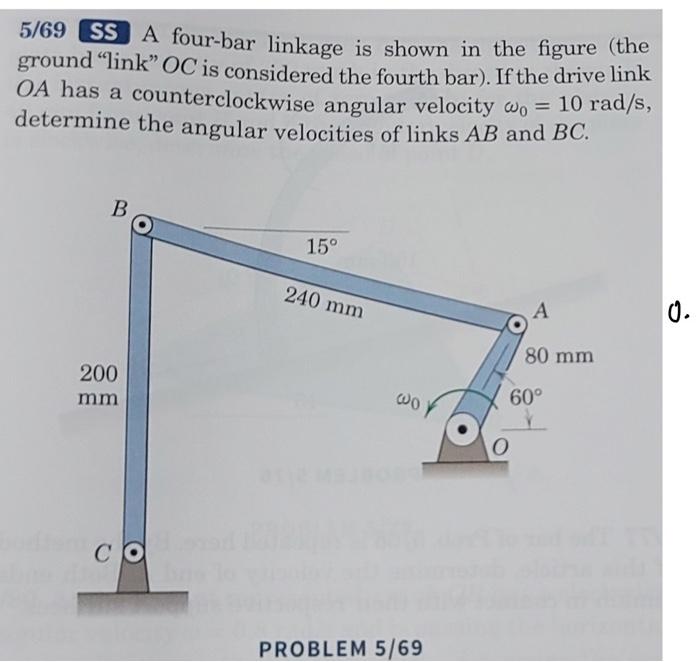

5/69 SS A four-bar linkage is shown in the figure (the ground "link" OC is considered the fourth bar). If the drive link OA has a counterclockwise angular velocity 0=10rad/s, determine the angular velocities of links AB and BC

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
