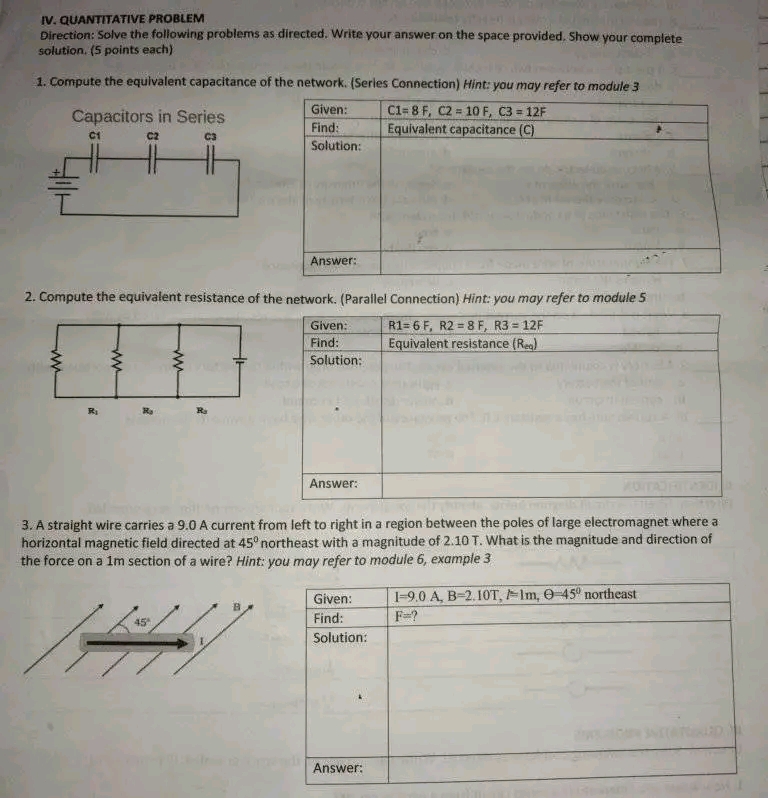

IV. QUANTITATIVE PROBLEM Direction: Solve the following problems as directed. Write your answer on the space provided. Show your complete solution. (5 points each) 1. Compute the equivalent capacitance of the network. (Series Connection) Hint: you may refer to module 3 Capacitors in Series Given: C1= 8 F, C2 = 10 F, C3 = 12F Find: Equivalent capacitance (C) Solution: Answer: 2. Compute the equivalent resistance of the network. (Parallel Connection) Hint: you may refer to module 5 Given: R1= 6 F, R2 = 8 F, R3 = 12F Find: Equivalent resistance (Reg) Solution: Answer: 3. A straight wire carries a 9.0 A current from left to right in a region between the poles of large electromagnet where a horizontal magnetic field directed at 45" northeast with a magnitude of 2.10 T. What is the magnitude and direction of the force on a im section of a wire? Hint: you may refer to module 6, example 3 Given: 1 9.0 A, B 2. 10T, /= Im, 0-45" northeast Find: F=? Solution
