Java language

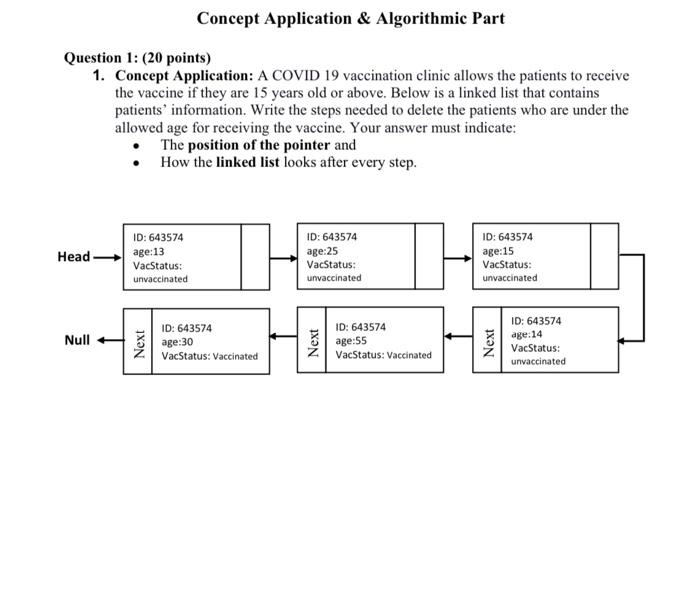

Concept Application & Algorithmic Part Question 1: (20 points) 1. Concept Application: A COVID 19 vaccination clinic allows the patients to receive the vaccine if they are 15 years old or above. Below is a linked list that contains patients' information. Write the steps needed to delete the patients who are under the allowed age for receiving the vaccine. Your answer must indicate: The position of the pointer and How the linked list looks after every step. Head ID: 643574 age:13 VacStatus: unvaccinated ID: 643574 age:25 VacStatus: unvaccinated H ID: 643574 age:15 VacStatus: unvaccinated Null Next ID: 643574 age:30 VacStatus: Vaccinated Next ID: 643574 age:55 VacStatus: Vaccinated Next ID: 643574 age: 14 VacStatus: unvaccinated Question 3: (20 points) 2. Algorithm Write up: In the same vaccination clinic system, there is a linked list which contains all the registered patients. Write an algorithm that searches the linked list for patients who received the second dose of the vaccine and stores them in a new linked list. Head- ID: 64300 VacStatus: Vaccinated Dose_1:0 Dose_2:0 ID: 54637 VacStatus: Vaccinated Dose 1:1 Dose_2:0 H ID: 85746 VacStatus: Vaccinated Dose 1:0 Dose 2:0 Null Next ID: 43545 VacStatus: Vaccinated Dose_1:0 Dose_2:0 ID: 23234 VacStatus: Vaccinated Dose_1:1 Dose_2:1 ID: 65455 VacStatus: Vaccinated Dose_1:1 Dose_2:1 The output of the algorithm should print The patients who received the second dose of the vaccine are: 1. ID: 23234, VacStatus: Vaccinated, Dose_1:1, Dose_2:1 2. ID: 65455, VacStatus: Vaccinated, Dose_1:1, Dose_2:1 Algorithm Input: The patients list Output: Display a list of the patients who received the second dose of the vaccine or display an appropriate message if no patient who took the second dose are found Method: Question 3: (60 points) Program 3: COVID19 Vaccine program Objective 1. The primary objective of this program is to implement a linked list. 2. The secondary objective is to practice with File 1/0 and arrays. Program Description You are a Java programmer in the National Vaccination Department. They asked you to create a program that manages and tracks the information of COVID19 vaccine cases in Saudi Arabia. Your program should be able to store an unlimited number of patients along with their basic personal information (ID, first name, last name, age, gender, phone, city, status, dosel, dose2) Your COVID19 Vaccine program will read a series of commands from an input file (input.in), such as ADD PATIENT, UPDATE VACCINE, FIND By_NAME, etc. You will need to process the commands and print the appropriate information to an output file (output.out). Implementation Your program has two linked lists. The first linked list called COVID19Vaccine Records, and it stores all patients records. When the patient registers in the program, the default status will be Unvaccinated. Whenever the patient receives the first dose of the vaccine, the patient's status must be updated to be vaccinated. The second linked list is called CitiesList. and it is a list of cities in Saudi Arabia, It will allow you to keep a record of the total number of unvaccinated and vaccinated cases in each city (i.c., Jeddah, Makkah, Riyadh, etc.) Input/output Specifications The input file will be called "input.in". The first line of the file will be an integer, k. indicating the number of commands that will be run on the program. The following k lines will cach be a single command, with its relevant data on the same line, separated by spaces The commands you will have to implement are as follows: ADD_PATIENT - Creates a new patient record (a new node). The command will be followed by the following information: ID fa non-negative int), first and last name, gender (a character type (F/M)), age (a non-negative int), phone (a non-negative int), city (String), status (Unvaccinated\Vaccinated enum). If this patient is not already stored in the system, it should be added to the linked list. Otherwise, an error should be printed (See output file for details). Additionally, after the patient is added to the system, that patient's city should be inserted into the linked list of CitiesList. If the city is already on the list, you should not add the city node. Instead, you should update (increment) the number of unvaccinated total cases in that city. UPDATE VACCINE - used to update the status of the patient's vaccine. This command is followed by the following information: ID (a non-negative int patient ID), dosel (String), or dose2(String). If the patient is already stored in the system, you should update the status from unvaccinated to vaccinated. Also, you should check if the patient receives the first or the second dose (See output file for details). If no matching patient record is found, an error message should be printed (See output file for details). Also, the unvaccinated and vaccinated cases in the patient's city should be updated (decrement the total unvaccinated cases and increment the total vaccinated cases). FIND_BY_NAME - This command will be followed by a name, first, then last. You must search the system to find the given name and then print out the patient information (See output file for details). If there was no match your program should print an error message saying that the patient has not been found (See output file for details). FIND_BY_ID - Similar to FIND_BY_NAME, this command will find a person based on his/her ID number instead. The output should include his/her information (See output file for details). If there was no match, your program should print an error message saying (See output file for details) DELETE_PATIENT - This command is used to delete the patient record from the system. This command will be followed by two Strings, the first name and last name of the record to be deleted. If the patient record is not found, an error message should be printed. If the patient's record shows that he/she got one or two doses of the vaccine, a message should be printed stating the patient has already received the vaccine and can't be deleted. Otherwise, the patient record should be deleted as well as the total of the unvaccinated patients in the patient's city should be updated (decremented), and an appropriate message printed (See output file for details). PRINT_RECORD - This command is followed by two Strings, the first and last name of the patient record you wish to print. If the record is not found, an error message should be printed. Otherwise, the record should be printed, including all the patient information and vaccination status (See output file for details). PRINT_CITY - This command prints the number of patients (unvaccinated, vaccinated) in each city PRINT_ALL - This command prints all patients information. (See output file for details). LUMII DE Here are the UML Diagram for the required case Patient Doto Members COVID19VaccineRecords Doto Members Operations/Methods Canon Pratt Operations/Methods And hermette And any other methode od CityNode Doto Members palica Citiestist Doto Members Operation/Methods CLIC Operations/Methods a. Der er wo tot) And any other method med And when they were COVID19Vaccine Program Operation Methods
