Java Programming

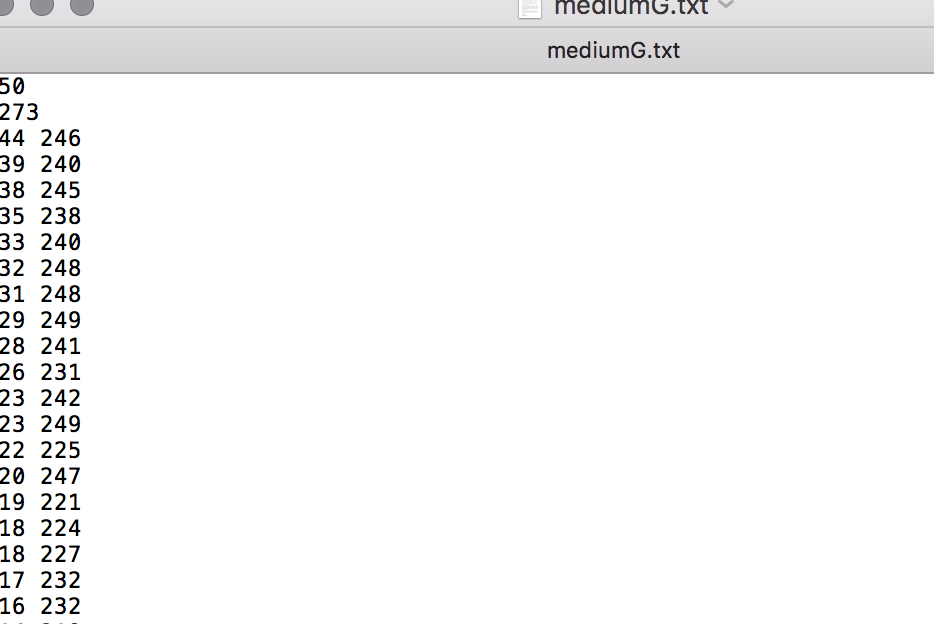

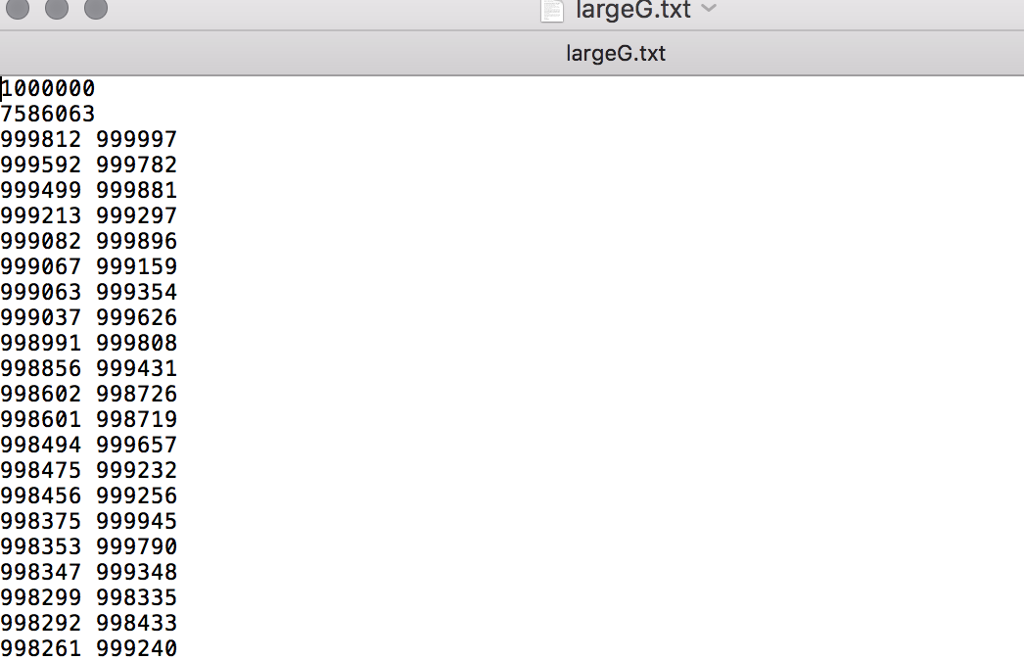

Please do 1 and 2. I can't attach the mediumG.txt or largeG.txt file, so I took a screenshot of the files. Include them in the code (Create a sample text file medium and large and do it with that). Send formatted code and screenshot of output. Thanks

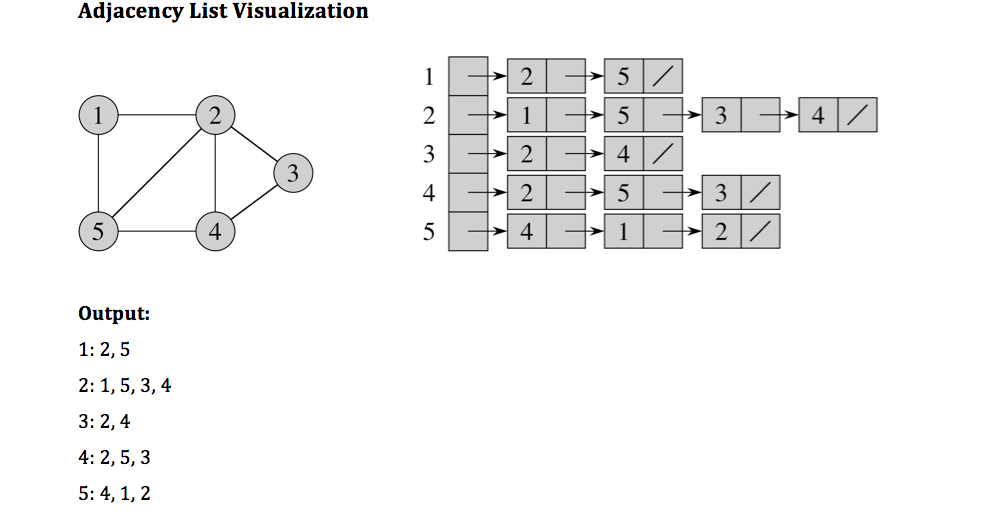

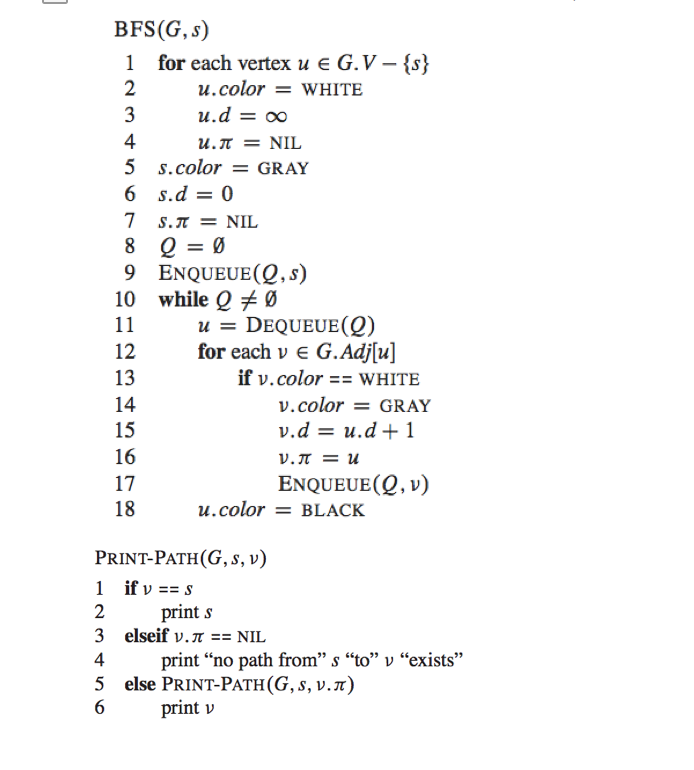

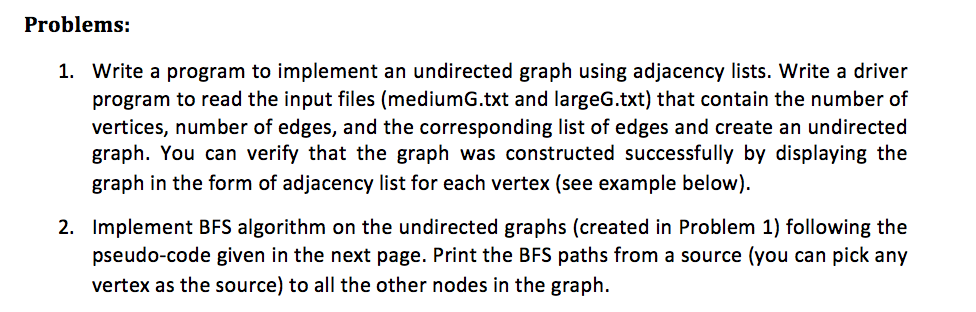

Problems: 1. Write a program to implement an undirected graph using adjacency lists. Write a driver program to read the input files (mediumG.txt and largeG.txt) that contain the number of vertices, number of edges, and the corresponding list of edges and create an undirected graph. You can verify that the graph was constructed successfully by displaying the graph in the form of adjacency list for each vertex (see example below) Implement BFS algorithm on the undirected graphs (created in Problem 1) following the pseudo-code given in the next page. Print the BFS paths from a source (you can pick any vertex as the source) to all the other nodes in the graph. 2. Problems: 1. Write a program to implement an undirected graph using adjacency lists. Write a driver program to read the input files (mediumG.txt and largeG.txt) that contain the number of vertices, number of edges, and the corresponding list of edges and create an undirected graph. You can verify that the graph was constructed successfully by displaying the graph in the form of adjacency list for each vertex (see example below) Implement BFS algorithm on the undirected graphs (created in Problem 1) following the pseudo-code given in the next page. Print the BFS paths from a source (you can pick any vertex as the source) to all the other nodes in the graph. 2
